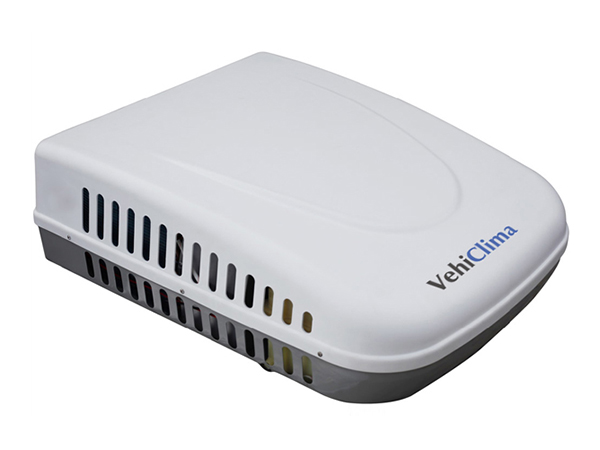

    DC Powered Truck Air Conditioner

    DC Powered Truck Air Conditioner
    DC Powered Truck Air Conditioner DC Powered Truck Air Conditioner

    This product has been discontinued and removed from our shelves.

    Our DC powered truck air conditioner is part of our roof-top unit series.

    Fully DC powered, the DC powered truck air conditioner features high efficiency, high reliability, battery power monitor, low noise, easy installation, easy operation, no idling, no fuel consumption, and no pollution.

    The DC powered truck air conditioner features a heating function so it can be used year long.

    ModelVDC22D2HR
    VoltageDC24V
    Refrigerant/Charge VolumeR134a/530g
    CompressorDisplacement15 cm3
    Lubricant OilPAG46
    Max. Rotary Speed3800 RPM
    CoolingCooling Capacity2200Watts 7600Btu/h
    Power Consuming750 Watts
    Rated Current32.5 A
    Cool Air Flow450 m3/h
    EER2.88
    HeatingHeating Capacity2950Watts 10000Btu/h
    Power Consuming710Watts
    Rated Current34.5A
    Warm Air Flow470 m3/h
    COP3.81
    Control SystemInside Temperature18~30℃Adjustable
    Defrost Temperature1~2 ℃
    Wind Speed3 steps
    Safety Device Compound Switch2.0Mpa OFF/0.03MpaOFF
    Power Loss ProtectionLow Voltage Settings20V
    Restart Voltage Settings23.8 V
    Unit Weight28.5 kgs
    Unit Oversize700x280x263mm
