VDC20F/GU1 DC Battery Powered Truck Air Conditioner

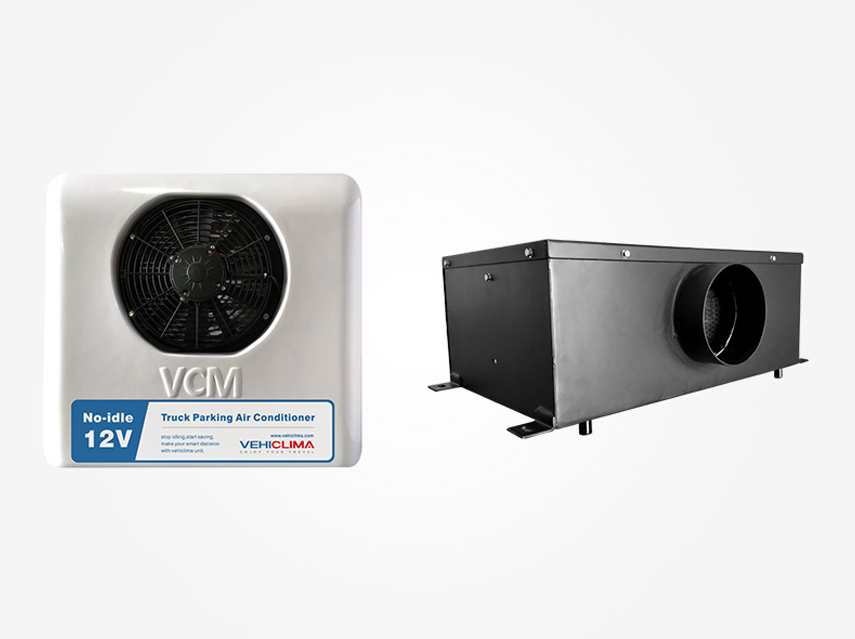

VDC20F/GU1 vehicle air conditioner is designed for North American Sleeper Trucks, mainly applied in the U.S.A., Canada and Mexico. The condenser is back wall mounted, and the evaporator is mounted under the bunk in truck cab. Cooled air is distributed through flexible air hose and hard air duct. This evaporator has only 1 air duct, but the air volume is as high as 585 CFM. 10-12 working hours can be achieved based on 4pcs fully charged batteries.Technical Parameter
|Cooling Capacity||2500Watts 8600 Btu/h||2500Watts 8600 Btu/h|
|Refrigerant / Charge Volume||R134a / 1.85 LBS (850 g)||R134a / 1.85 LBS (850 g)|
|Total Current @ 35C/95F Ambient Temp||56A||28A|
|Compressor||Displacement||12.8 cc/rev||12.8 cc/rev|
|Refrigerant Oil / Vol.||RL68ER / 300cc||RL68ER / 300cc|
|RPM||4000 Max||4000 Max|
|Evaporator||Type||Copper Tube and Aluminum Fins||Copper Tube and Aluminum Fins|
|Cooled Air Flow||585 CFM (1000 m³/h)||585 CFM (1000 m³/h)|
|Condenser||Type||Multi-flow Aluminum||Multi-flow Aluminum|
|Air Flow||1100 CFM (1870 m³/h)||1100 CFM (1870 m³/h)|
|Control System||Inside Temperature||15~ 30 ℃ Adjustable||15~ 30 ℃ Adjustable|
|Defrost Temperature||1~ 2 ℃||1~ 2 ℃|
|Wind Speed||3 steps||3 steps|
|Compound Switch Pressure Protection||250 PSI OFF / 5 PSI OFF||250 PSI OFF / 5 PSI OFF|
|Power Loss Protection||Auxiliary Battery||under voltage protection||9.5 V||21 V|
|restart voltage settings||12 V||24 V|
|Ambient Temperature||-30 ~ 60 ℃|
|Unit Weight||Outdoor unit: 65 LBS / 29.5 kg |
Indoor unit: 16 LBS / 7.25 kg
|Unit Oversize||Outdoor unit: 27"x24.8"x7" / 685x630x185mm |
Indoor unit: 18.3"x12"x7.2" / 464x304x184mm
- VDC20F/GU2The condenser is back wall mounted, and the evaporator is mounted under the bunk in truck cab.
- VDC20F/DBThe condenser is rooftop-mounted, and the evaporator is wall-mounted in truck cab.
- VDC20F/HAUsually this air conditioning unit works with 2pcs batteries or 4pcs batteries.
- VDC20F/HBThe condenser is side-mounted to the crane body, and the evaporator is wall-mounted in a suitable place.
