VDC20F/GA Battery Powered Truck Air Conditioner

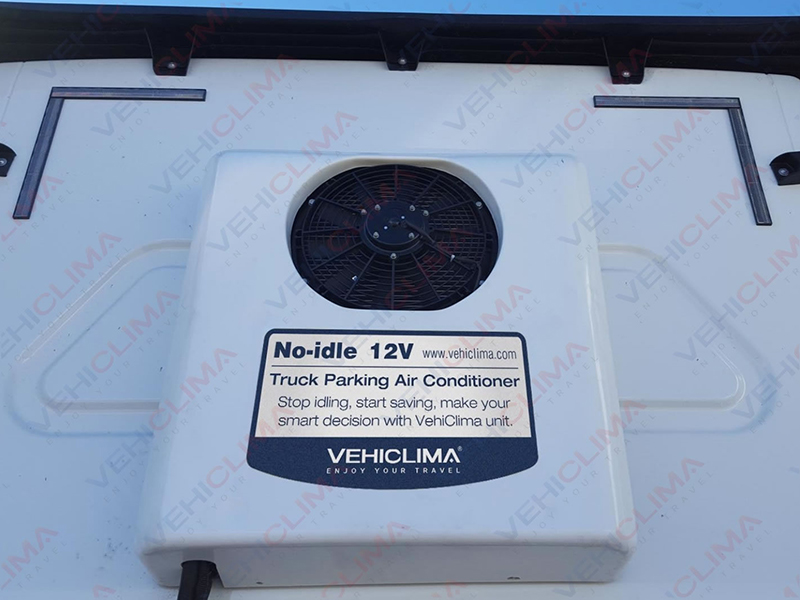

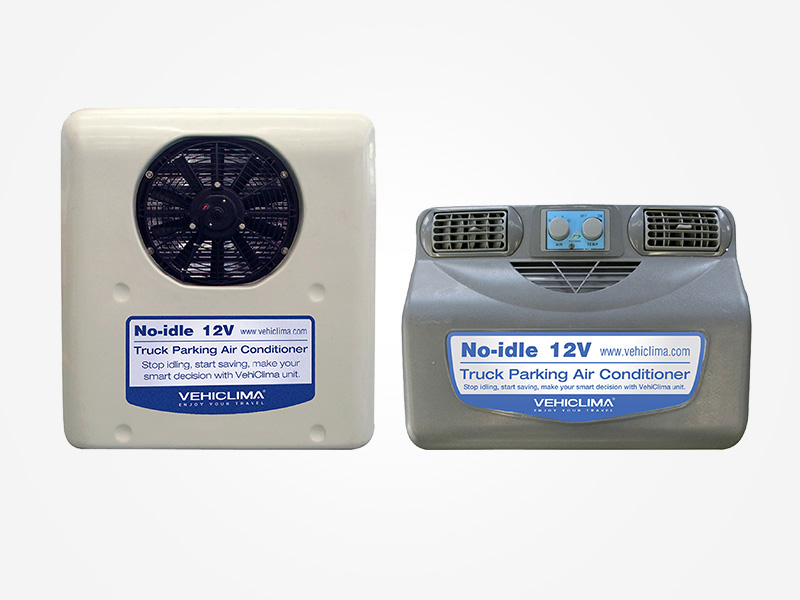

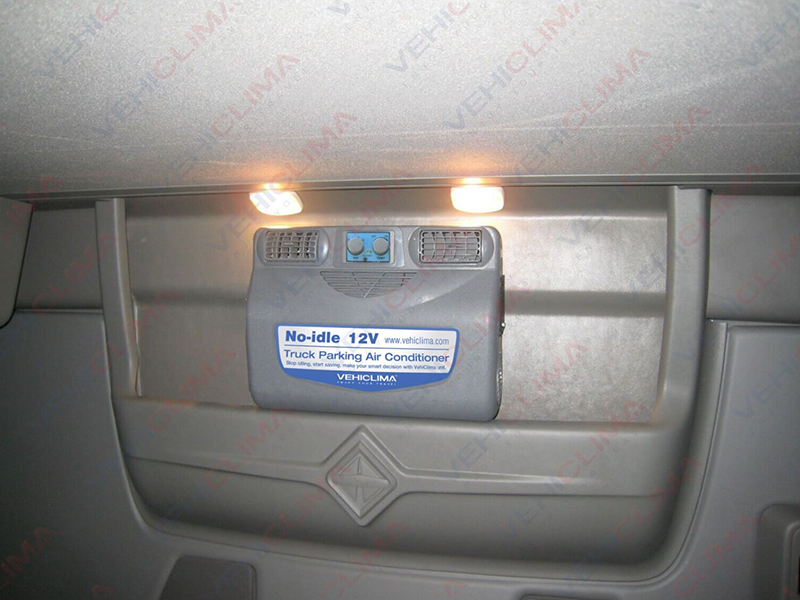

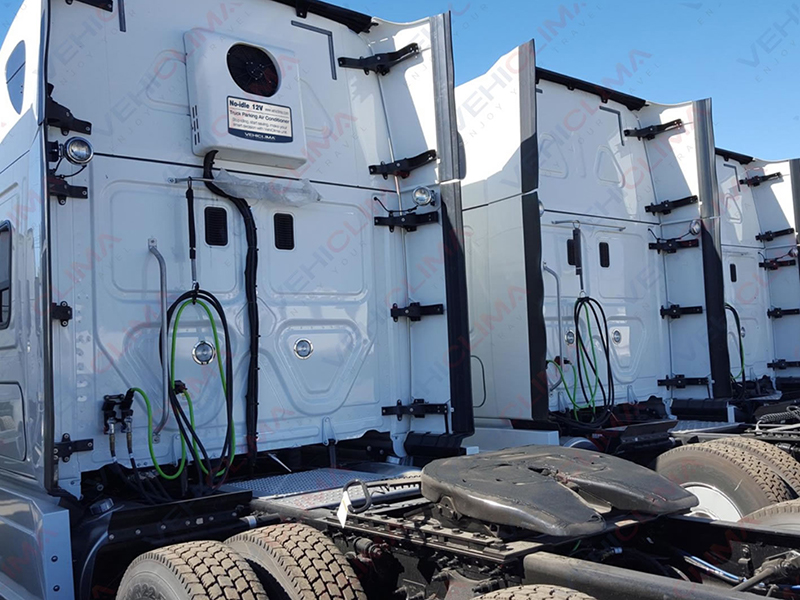

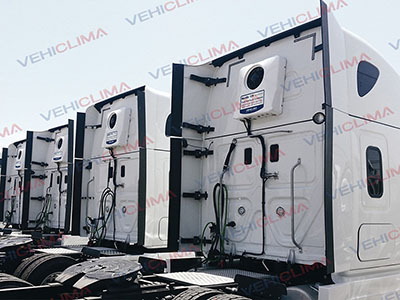

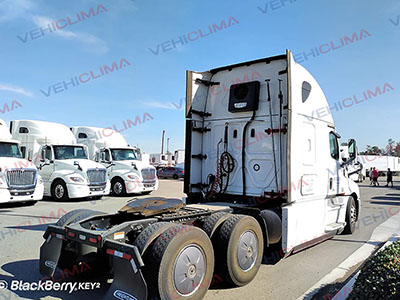

VDC20F/GA vehicle air conditioner is designed for North American Sleeper Trucks, mainly applied in the U.S.A., Canada and Mexico. The condenser is back wall mounted, and the evaporator is mounted in truck Cab. Cooled air directly blows to the desired direction the driver set. 10-12 working hours can be achieved based on 4pcs fully charged batteries.Technical Parameter
|Cooling Capacity||2500Watts 8600 Btu/h||2500Watts 8600 Btu/h|
|Refrigerant / Charge Volume||R134a / 1.85 LBS (850 g)||R134a / 1.85 LBS (850 g)|
|Total Current @ 35C/95F Ambient Temp||56A||28A|
|Compressor||Displacement||12.8 cc/rev||12.8 cc/rev|
|Refrigerant Oil / Vol.||RL68ER / 300cc||RL68ER / 300cc|
|RPM||4000 Max||4000 Max|
|Evaporator||Type||Copper Tube and Aluminum Fins||Copper Tube and Aluminum Fins|
|Cooled Air Flow||235 CFM (400 m³/h)||235 CFM (400 m³/h)|
|Condenser||Type||Multi-flow Aluminum||Multi-flow Aluminum|
|Air Flow||1100 CFM (1870 m³/h)||1100 CFM (1870 m³/h)|
|Control System||Inside Temperature||15~ 30 ℃ Adjustable||15~ 30 ℃ Adjustable|
|Defrost Temperature||1~ 2 ℃||1~ 2 ℃|
|Wind Speed||3 steps||3 steps|
|Compound Switch Pressure Protection||250 PSI OFF / 5 PSI OFF||250 PSI OFF / 5 PSI OFF|
|Power Loss Protection||Auxiliary Battery||under voltage protection||9.5 V||21 V|
|restart voltage settings||12 V||24 V|
|Ambient Temperature||-30 ~ 60 ℃|
|Unit Weight||Outdoor unit: 76 LBS / 34.5 kg |
Indoor unit: 16 LBS / 7.25 kg
|Unit Oversize||Outdoor unit: 30"x28"x7" / 685x750x185mm|
Indoor unit: 17"x13"x6" / 430x320x150mm
VDC series truck air conditioner is fully DC battery powered. The revolutionary A/C system is powered by 12 volts or 24 volts starting or auxiliary battery without running the vehicle's engine. Non-fuel consumption, no idling, zero emission, non-pollution, this makes the air cooler very economical comparing to the traditional products.
1.High Efficiency: The hermetic integrated electric brushless motor (BLDC) rotary compressor is highly efficient and powerful in cooling capacity. It provides low power consumption and low noise.
2.High Reliability: The compressor of the truck air conditioner has a soft starting, no excessive start-up current. Multiple self-protection functions, like pressure alarm protection, over/under voltage protection, compressor motor's over-heat protection, compressor failure checking, these ensure the system of high reliability and high security.
3.Battery Power Monitor: Never worry about excessive battery drain. The controlling system comes standard with over/under voltage cut-out switch, to prevent discharging the battery below its required voltage to start the vehicle engine.
4.Low Noise: The DC battery powered truck air conditioner produces no more than 65dBA of noise to make sure the driver can have a good sleep when the truck stops.
Engine has no idling, no wearing and no vibration, which makes a big saving on maintenance costs in the following years.

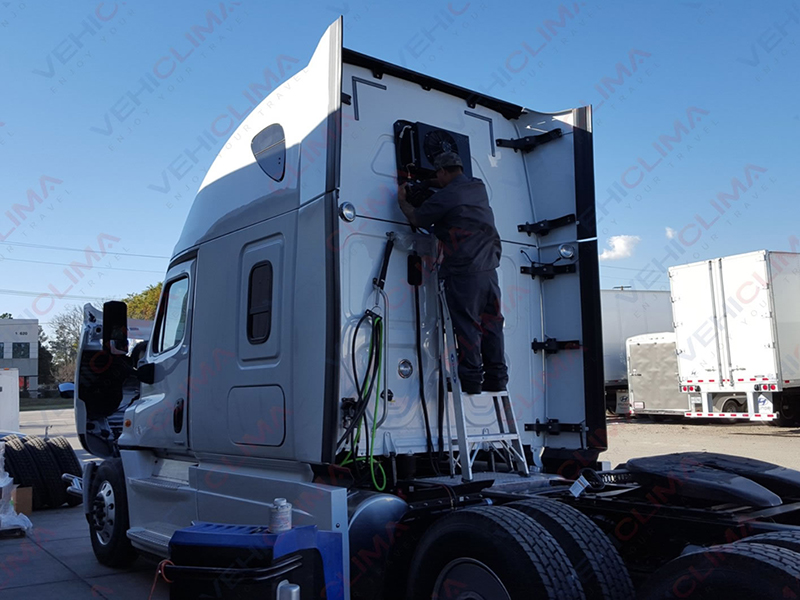

5.Easy Installation: Any qualified mechanic can install the DC battery powered truck air conditioner. The units are fully self-contained. Just connect the wires to a full battery. Charge gas R134a, and then it starts cooling!
6.Easy Operation: Manual operating is allied with remote control. Operation is as easy as a household air conditioning system.
7.Wide-Range Application: The DC powered truck air conditioner is designed to run on the normal starter batteries. It can be applied to various trucks, US made truck cabs, truck sleeper cabs, engineering machinery cabs, mini buses, vans, motor homes/RV's, electric vehicles and other special vehicles etc.
According to a data from our years of experience, on average, one truck can reduce 2000 idling hours and less consume 1600 gallons of fuel per year if the DC electric powered automotive air conditioning is used.
1. Use the air conditioner without engine idling,big saving on fuel costs;
2. Much less maintenance to the engine and vehicle due to less wear and vibration;
3. Abundant cooling capacity PLUS low noise, more comfortable in truck cab;
4. Zero emission, no air pollution to the atmosphere;
5. Self-contained compressor, easy to install the unit;
6. 10-12 working hours based on 4 pcs fully charged batteries;
7. Reliable working performance and super quality ensure a long-lasting lifespan.
8. Simplistic design and fewer parts result in an easier maintenance.
The DC battery powered truck air conditioner offers wide range application. Designed to run on normal starter batteries, the DC powered unit can be applied to various trucks, US made truck cabs, truck sleeper cabs, engineering machinery cabs, mini bus, vans, motor homes/RVs, electric vehicles, other special vehicles and etc.
