DC Powered Truck Air Conditioner

DC Powered Truck Air Conditioner
DC Powered Truck Air Conditioner DC Powered Truck Air Conditioner

This product has been discontinued and removed from our shelves.

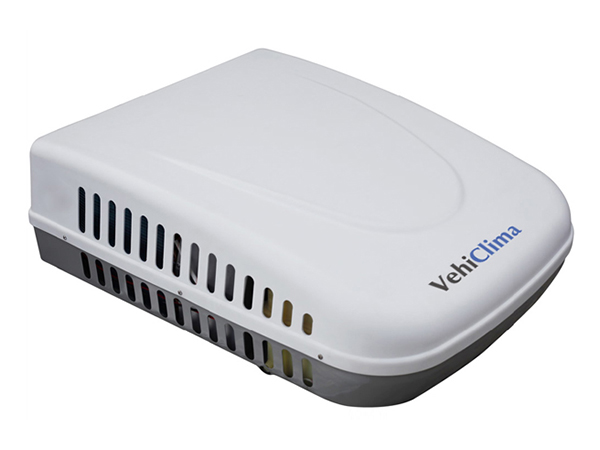

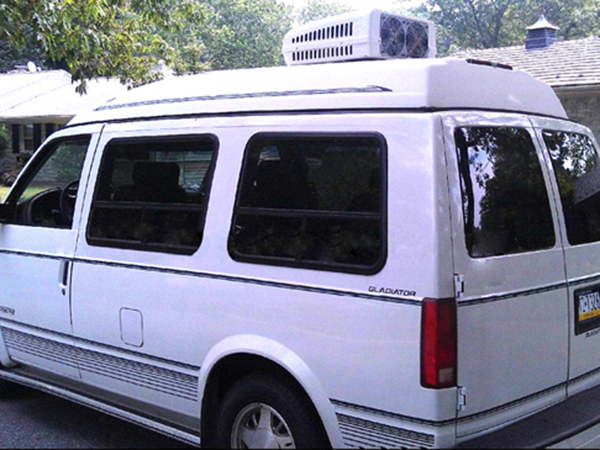

This DC powered truck air conditioner is part of our roof-top unit series.

Our DC powered truck air conditioner offers easy installation and operation and is fully DC powered. It features high efficiency, high reliability, battery power monitor, low noise, no idling, no fuel consumption, and no pollution.

ModelVDC22D2
VoltageDC24V
Refrigerant/Charge VolumeR134a/530g
CompressorDisplacement15 cm3
Lubricant OilPAG46
Max. Rotary Speed3800 RPM
Cooling Capacity2200Watts 7600Btu/h
Power Consuming750 Watts
Rated Current32.5 A
Cool Air Flow450 m3/h
EER2.88
Control SystemInside Temperature18~30℃Adjustable
Defrost Temperature1~2 ℃
Wind Speed3 steps
Safety Device Compound Switch2.0Mpa OFF/0.03MpaOFF
Power Loss ProtectionLow Voltage Settings20V
Restart Voltage Settings23.8 V
Unit Weight28.5 kgs
Unit Oversize700x280x263mm
Other Products
    1. VDC20F/GU2
    2. VDC20F/GU2The condenser is back wall mounted, and the evaporator is mounted under the bunk in truck cab.
    1. VDC20F/E
    2. VDC20F/DBThe condenser is rooftop-mounted, and the evaporator is wall-mounted in truck cab.
    1. VDC20F/HA
    2. VDC20F/HAUsually this air conditioning unit works with 2pcs batteries or 4pcs batteries.
    1. VDC20F/H
    2. VDC20F/HBThe condenser is side-mounted to the crane body, and the evaporator is wall-mounted in a suitable place.
