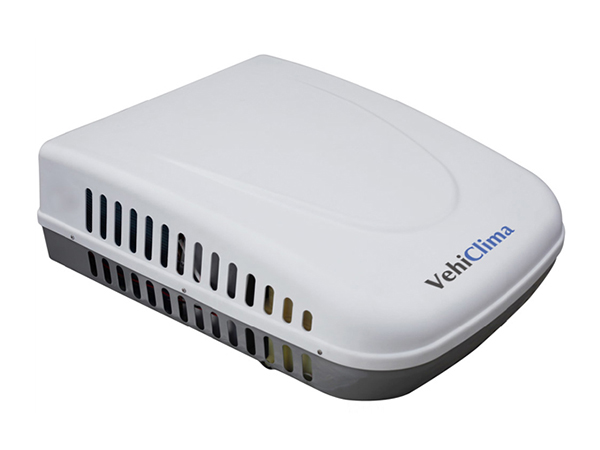

DC Powered Truck Air Conditioner
This product has been discontinued and removed from our shelves.
Our DC powered truck air conditioner is included in our roof-top unit series.
Fully DC powered, our truck air conditioner features high reliability, high efficiency, easy installation and operation, battery power monitor, low noise, no idling, no fuel consumption, and no pollution.
The DC powered truck air conditioner has a heating function enabling it to be used throughout the entire year.
| Model | VDC28D2HR | ||||
| Voltage | DC24V | ||||
| Refrigerant/Charge Volume | R134a/630g | ||||
| Compressor | Displacement | 18 cm3 | |||
| Lubricant Oil | PAG46 | ||||
| Max. Rotary Speed | 3800 RPM | ||||
| Cooling | Cooling Capacity | 2800Watts 9600Btu/h | |||
| Power Consuming | 1100 Watts | ||||
| Rated Current | 42 A | ||||
| Cool Air Flow | 550 m3/h | ||||
| EER | 2.8 | ||||
| Heating | Heating Capacity | 3500Watts 12000Btu/h | |||
| Power Consuming | 1050Watts | ||||
| Rated Current | 43.5A | ||||
| Warm Air Flow | 580 m3/h | ||||
| COP | 3.25 | ||||
| Control System | Inside Temperature | 18~30℃Adjustable | |||
| Defrost Temperature | 1~2 ℃ | ||||
| Wind Speed | 3 steps | ||||
| Safety Device Compound Switch | 2.0Mpa OFF/0.03MpaOFF | ||||
| Power Loss Protection | Low Voltage Settings | 20V | |||
| Restart Voltage Settings | 23.8 V | ||||
| Unit Weight | 42 kgs | ||||
| Unit Oversize | 885x710x290mm | ||||
