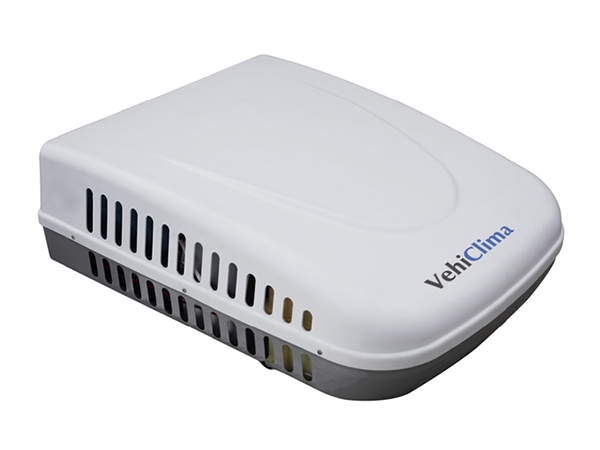

DC Powered Truck Air Conditioner

DC Powered Truck Air Conditioner
DC Powered Truck Air Conditioner DC Powered Truck Air Conditioner

This product has been discontinued and removed from our shelves.

Our DC powered truck air conditioner is part of our roof-top unit series.

This truck air conditioner is fully DC powered. This air conditioner offers high efficiency, high reliability, battery power monitor, low noise, easy installation and operation, no idling, no fuel consumption, and no pollution.

ModelVDC28D2
VoltageDC24V
Refrigerant/Charge VolumeR134a / 630g
CompressorDisplacement18 cm3
Lubricant OilPAG46
Max. Rotary Speed3800 RPM
Cooling Capacity2800Watts 9600Btu/h
Power Consuming1100 Watts
Rated Current42 A
Cool Air Flow550 m3/h
EER2.8
Control SystemInside Temperature18~30℃Adjustable
Defrost Temperature1~2 ℃
Wind Speed3 steps
Safety Device Compound Switch2.0Mpa OFF/0.03MpaOFF
Power Loss ProtectionLow Voltage Settings20V
Restart Voltage Settings23.8 V
Unit Weight42 kgs
Unit Oversize885x710x290mm
