Container Truck Refrigeration Unit
This product has been discontinued and removed from our shelves.

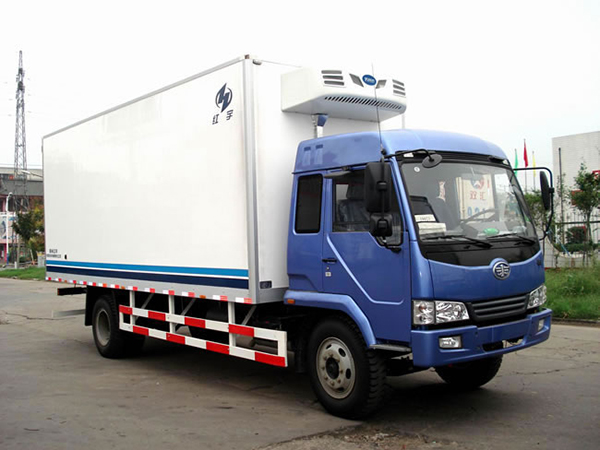

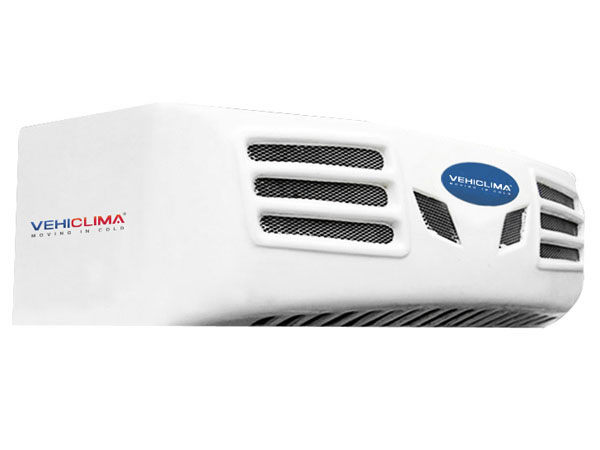

VR860 container truck refrigeration unit can be used for 45-50m3 container truck.
Technical specifications| Unit Model | VR-860 | ||
| Applicable Temperature (℃) | 15 ~ -18℃ | ||
| Applicable Volume (m3) | 40 ~ 50 | ||
| Refrigerating Capacity (W) | Environmental Temperature | 35℃ | |
| 0 ℃ | 8250 | ||
| - 18℃ | 3850 | ||
| Compressor | Model | UPF200 | |
| Type | Swash Plate Design | ||
| Displacement (cc/r) | 200 | ||
| Lubrication Oil | POE-68H (Unidap 4) | ||
| Condenser | Type | Inner Screw Copper Tube and Aluminum Fin | |
| Fan Type | Axial Flow | ||
| Fan Quantity | 2 | ||
| Voltage | DC24V/12V | ||
| Evaporator | Type | Inner Screw Copper Tube and Aluminum Fin | |
| Fan Type | Double Axle Centrifugal Flow | ||
| Fan Quantity | 3 | ||
| Voltage | DC24V/12V | ||
| Throttle Type | External Equalizer Expansion Valve | ||
| Refrigerant | R404A | ||
| Refrigerant Charge Amount (kgs) | 3.5kg | ||
| Defrost Type | Hot Gas Defrosting | ||
| Structure Type | Split, Dependent Type | ||
| Installation Type | Front-mounted | ||
| Overall Dimension (mm) | Evaporator | 1700×600×200 | |
| Condenser | 1550×620×430 | ||
| Weight (kg) | Evaporator | 42 | |
| Condenser | 90 | ||
Note: Standard cartons in shipping packaging.
One year (12 months) warranty period since the date the products have been installed.
As a China container truck refrigeration unit manufacturer, we also produce electric truck air conditioner, auxiliary power unit truck air conditioner, recreational vehicle air conditioner, big bus air conditioner, ambulance car air conditioner, and more.
