RS280 Split Nose-mount Truck Refrigeration Unit
For Frozen 4.5㎥ ~ Fresh 8㎥ Truck
| Container Size | Frozen | -25 ℃ | 4 ㎥ |
| -20 ℃ | 5.5 ㎥ | ||
| -15 ℃ | 7 ㎥ | ||
| -10 ℃ | 9 ㎥ | ||
| Fresh/chilled | -5 ℃ ~ 15 ℃ | up to 10 ㎥ | |
| Truck Size | 0.75 tons | ||
| Temperature | W | Kcal/h | Btu/h | |
| Cooling Capacity | 1.7 ℃ | 2100 | 1806 | 7224 |
| -17.8 ℃ | 1200 | 1032 | 4128 | |
ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm
Other Specification| Condenser Dimensions (L x W x H, mm) | 880 x 485 x 235 | |
| Eva. | Dimensions(L x W x H, mm) | 670 x 590 x 144 |
| Motor Quantity (pcs) | 2 | |
| Air Flow (m3/h) | 1200 | |
| Weight (kgs) | 40 | |
| Comp. | Model | Sanden SD5S11 |
| Displacement | 108cc | |
| R404a (kgs) | 1.3 | |
Note:
The above refrigerating capacity is tested @ISO standard of ambient temp.: 37.8℃, compressor speed: 2400rpm.
* The above applicable volume is only for reference, which is based on thermal conductivity of the insulation boxes of no higher than 0.39W/m2.K, the actual applicable volume is related to factors such as insulation panel thickness & its heat preservation performance, ambient temperature, and cargo itself.
* The above data shall be subject to changes without any prior notice.
System components:

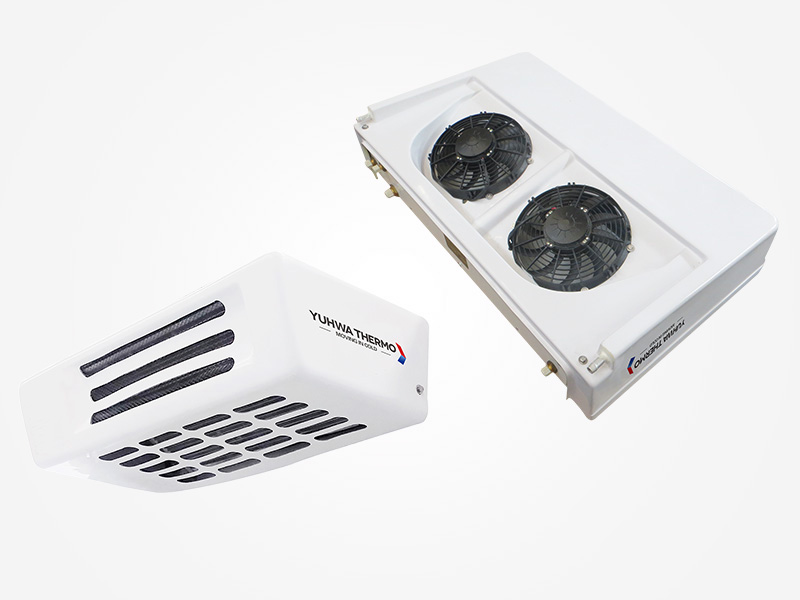

Condenser unit
Super slim evaporator unit

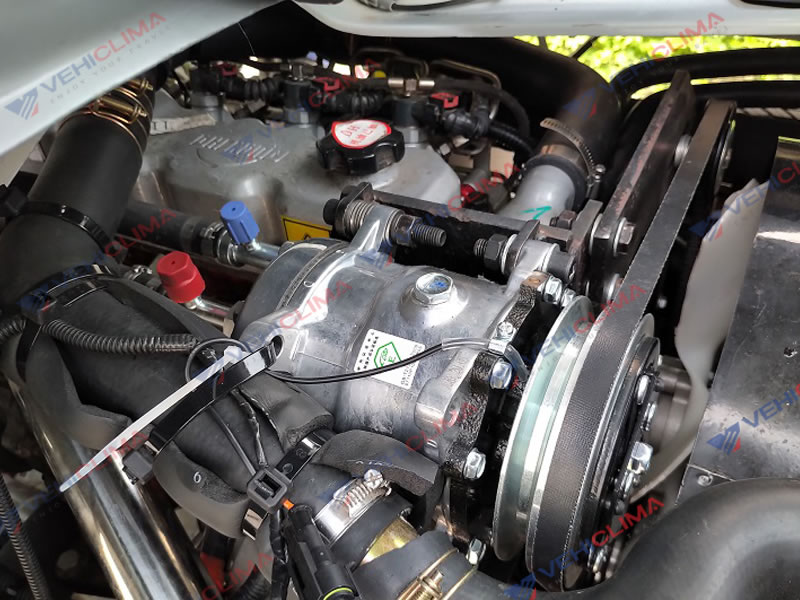

Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)
Refrigerant:
HFC R404a chlorine zero
Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting
Voltage:
DC12V / DC24V
-
