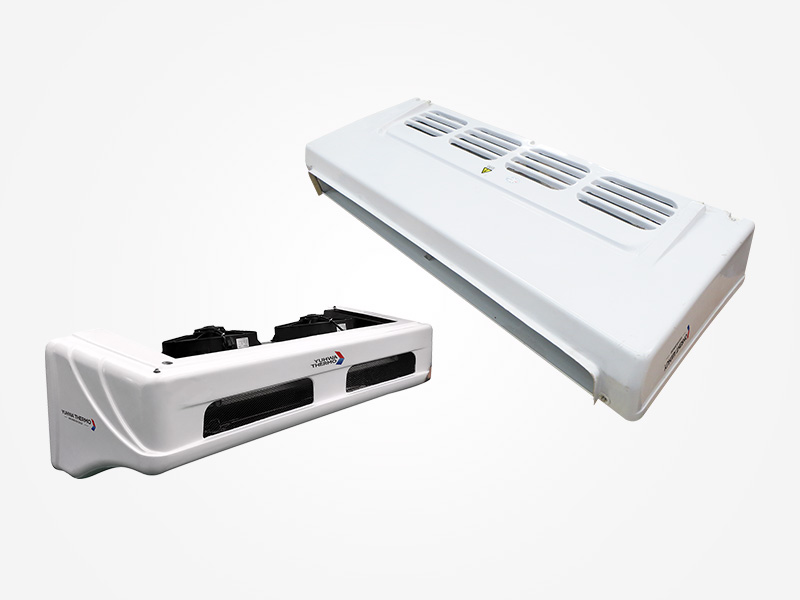

RS680 Split Nose-mount Truck Refrigeration Unit
For Frozen 18㎥ ~ Fresh 32㎥ Truck
| Container Size | Frozen | -25 ℃ | 18 ㎥ |
| -20 ℃ | 22 ㎥ | ||
| -15 ℃ | 24 ㎥ | ||
| -10 ℃ | 28 ㎥ | ||
| Fresh/chilled | -5 ℃ ~ 15 ℃ | up to 32 ㎥ | |
| Truck Size | 8 tons | ||
| Temperature | W | Kcal/h | Btu/h | |
| Cooling Capacity | 1.7 ℃ | 5600 | 4816 | 19264 |
| -17.8 ℃ | 3300 | 2838 | 11352 | |
ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm
Other Specification| Condenser Dimensions (L x W x H, mm) | 1460 x 510 x 430 | |
| Eva. | Dimensions(L x W x H, mm) | 1680 x 620 x 233 |
| Motor Quantity (pcs) | 4 | |
| Air Flow (m3/h) | 3200 | |
| Weight (kgs) | 115 | |
| Comp. | Model | TCCI QP21 (TK21) |
| Displacement | 215cc | |
| R404a (kgs) | 3.2 | |
Note:
The above refrigerating capacity is tested @ISO standard of ambient temp.: 37.8℃, compressor speed: 2400rpm.
* The above applicable volume is only for reference, which is based on thermal conductivity of the insulation boxes of no higher than 0.39W/m2.K, the actual applicable volume is related to factors such as insulation panel thickness & its heat preservation performance, ambient temperature, and cargo itself.
* The above data shall be subject to changes without any prior notice.
System components:
Condenser unit
Super slim evaporator unit
Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)
Refrigerant:
HFC R404a chlorine zero
Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting
Voltage:
DC12V / DC24V
-
