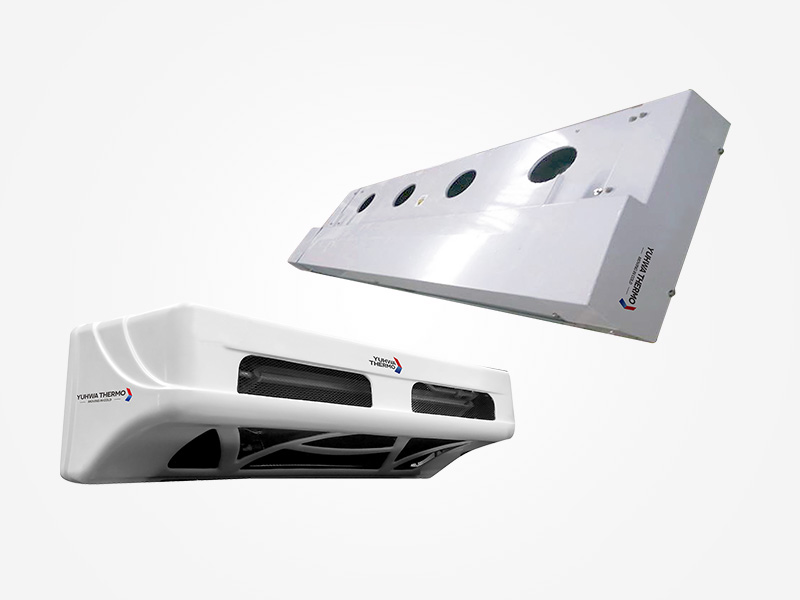

RS980 Split Nose-mount Truck Refrigeration Unit
For Frozen 30㎥ ~ Fresh 50㎥ Truck
| Container Size | Frozen | -25 ℃ | 30 ㎥ |
| -20 ℃ | 34 ㎥ | ||
| -15 ℃ | 38 ㎥ | ||
| -10 ℃ | 43 ㎥ | ||
| Fresh/chilled | -5 ℃ ~ 15 ℃ | up to 50 ㎥ | |
| Truck Size | 17 tons | ||
| Temperature | W | Kcal/h | Btu/h | |
| Cooling Capacity | 1.7 ℃ | 7600 | 6536 | 26144 |
| -17.8 ℃ | 4500 | 3870 | 15480 | |
ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm
Other Specification| Condenser Dimensions (L x W x H, mm) | 1460 x 510 x 430 | |
| Eva. | Dimensions(L x W x H, mm) | 1900 x 700 x 210 |
| Motor Quantity (pcs) | 4 | |
| Air Flow (m3/h) | 4800 | |
| Weight (kgs) | 141 | |
| Comp. | Model | TCCI QP31 (TK31) |
| Displacement | 313cc | |
| R404a (kgs) | 4.5 | |
Note:
The above refrigerating capacity is tested @ISO standard of ambient temp.: 37.8℃, compressor speed: 2400rpm.
* The above applicable volume is only for reference, which is based on thermal conductivity of the insulation boxes of no higher than 0.39W/m2.K, the actual applicable volume is related to factors such as insulation panel thickness & its heat preservation performance, ambient temperature, and cargo itself.
* The above data shall be subject to changes without any prior notice.
System components:
Condenser unit
Super slim evaporator unit
Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)
Refrigerant:
HFC R404a chlorine zero
Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting
Voltage:
DC12V / DC24V
-
