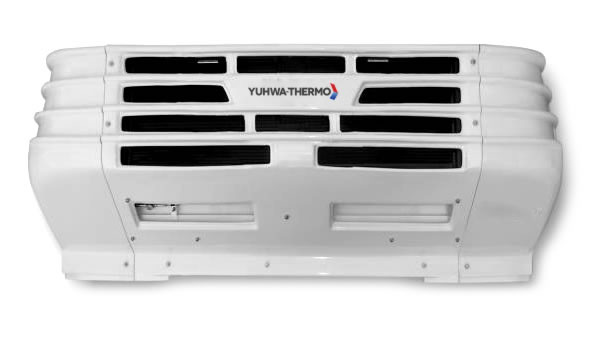

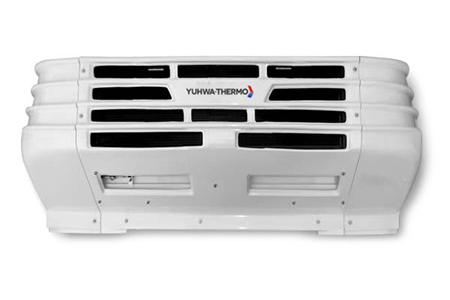

RM3500 Monoblock Type Truck Refrigeration Unit
For Frozen 4.5㎥ ~ Fresh 8㎥ Truck
| Container Size | Frozen | -25 ℃ | 14.5 ㎥ |
| -20 ℃ | 16.0 ㎥ | ||
| -15 ℃ | 17.0 ㎥ | ||
| -10 ℃ | 18.0 ㎥ | ||
| Fresh/chilled | -5 ℃ ~ 15 ℃ | up to 22 ㎥ | |
| Truck Size | 2.5-3.5 tons | ||
| Temperature | W | Kcal/h | Btu/h | |
| Cooling Capacity | 0 ℃ | 4470 | 3844 | 15376 |
| -18 ℃ | 2580 | 2219 | 8876 | |
ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm
Other Specification| Dimensions (L x W x H, mm) | 1632 x 706 x 536 | |
| Evaporator Air Flow (m3/h) | 1500 | |
| Weight (kgs) | 111 | |
| Installation Hole Size (mm) | 1250 x 482 | |
| Comp. | Model | TM21 |
| Displacement | 215cc | |
| R404a (kgs) | 1.7 | |
Note:
The above refrigerating capacity is tested @ISO standard of ambient temp.: 37.8℃, compressor speed: 2400rpm.
* The above applicable volume is only for reference, which is based on thermal conductivity of the insulation boxes of no higher than 0.39W/m2.K, the actual applicable volume is related to factors such as insulation panel thickness & its heat preservation performance, ambient temperature, and cargo itself.
* The above data shall be subject to changes without any prior notice.
System components:
Condenser unit
Super slim evaporator unit
Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)
Refrigerant:
HFC R404a chlorine zero
Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting
Voltage:
DC12V / DC24V
-
