| Container Size | Frozen | -25 ℃ | 11 ㎥ |
| -20 ℃ | 12 ㎥ | ||
| -15 ℃ | 15 ㎥ | ||
| -10 ℃ | 18 ㎥ | ||
| Fresh/chilled | -5 ℃ ~ 15 ℃ | up to 20 ㎥ | |
| Truck Size | 1.5 tons | ||
| Temperature | W | Kcal/h | Btu/h | |
| Cooling Capacity | 0 ℃ | 4100 | 3526 | 14104 |
| -18 ℃ | 2100 | 1806 | 7224 | |
ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm
| Condenser Dimensions (L*W*H, mm) | 1020*520*355 | |
| Eva. | Dimensions(L*W*H, mm) | 1020*660*213 |
| Motor Quantity (pcs) | 2 | |
| Air Flow (m3/h) | 1600 | |
| Weight (kgs) | 64 | |
| Comp. | Model | Sanden SD7L15 |
| Displacement | 155cc | |
| R404a (kgs) | 1.6 | |
Note:
* The above refrigerating capacity is tested @ISO standard of ambient temp.: 37.8℃, compressor speed: 2400rpm.
* The above applicable volume is only for reference, which is based on thermal conductivity of the insulation boxes of no higher than 0.39W/m2.K, the actual applicable volume is related to factors such as insulation panel thickness & its heat preservation performance, ambient temperature, and cargo itself.
* The above data shall be subject to changes without any prior notice.

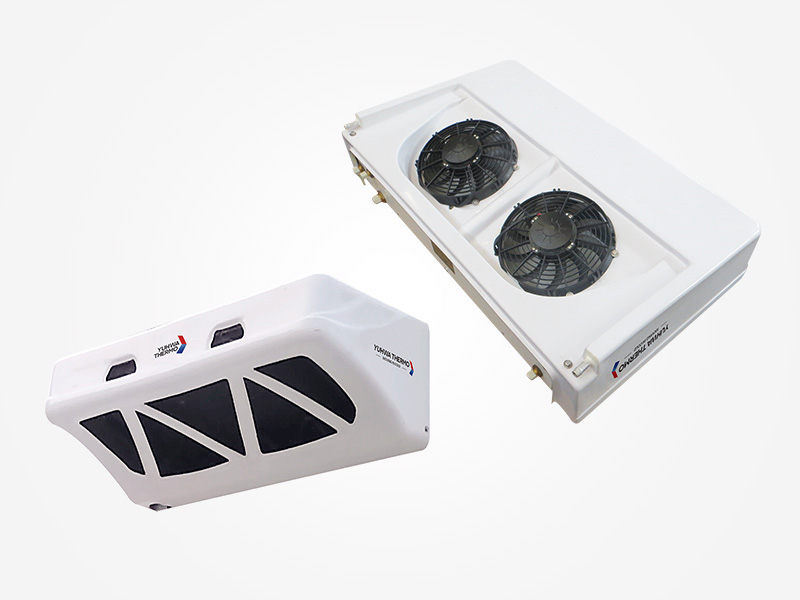

System components:
Condenser unit

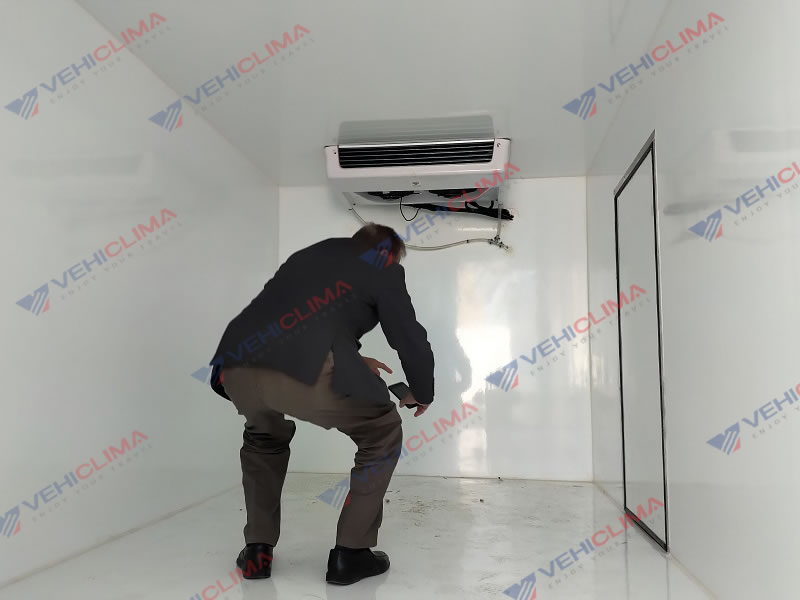

Super slim evaporator unit

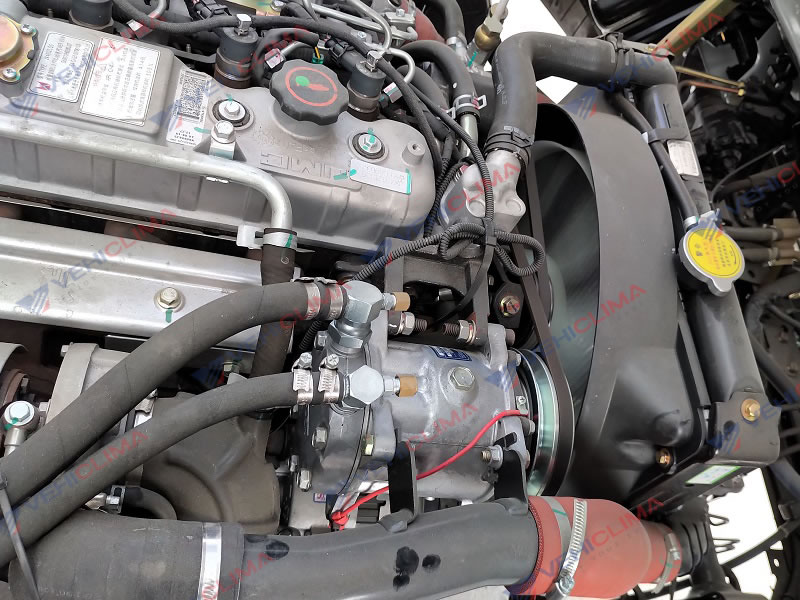

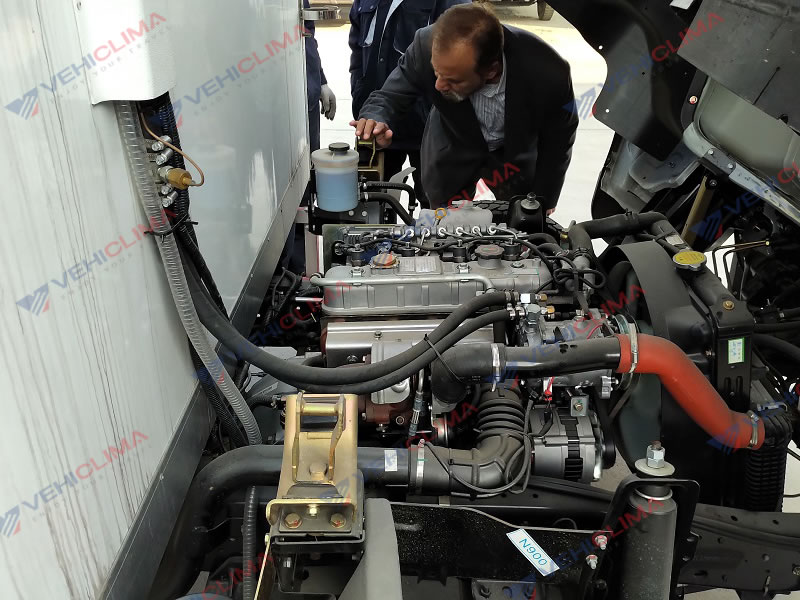

Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)
Refrigerant:
HFC R404a chlorine zero
Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting
Voltage:
DC12V / DC24V
