DC Electric Powered Truck Air Conditioner

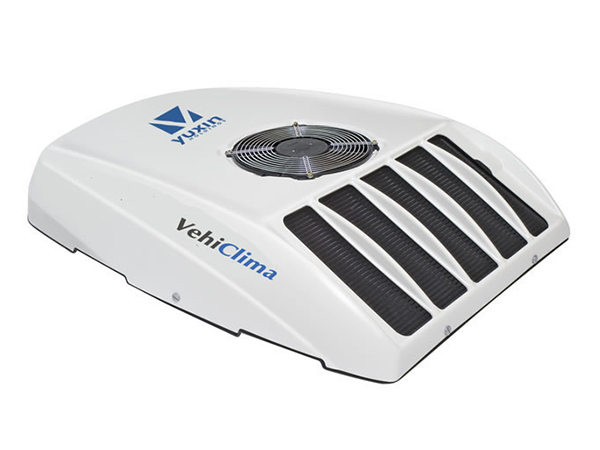

YXDT03A DC Electric Powered Truck Air Conditioner
YXDT03A DC Electric Powered Truck Air Conditioner YXDT03A DC Electric Powered Truck Air Conditioner

This product has been discontinued and removed from our shelves.

Features
1. The DC electric powered truck air conditioner finds applications in a wide range of places because of its non-installation for the engine-drive compressor.
2. The one-body integrated structure offers easy DIY installation, making it possible to save labor costs.
3. It uses a hermetic integrated electric brushless motor (BLDC) compressor which features low noise and less vibration. This provides the driver a good driving environment.
4. Direct current drive, there is no need for converter.
5. Automatic, Manual, Night (fresh air) total 3 working modes, abundant cooling capacity, provide a perfect comfort solution world-widely.
6. For users' convenience, this DC powered truck air conditioner comes with three working modes that are automatic, manual and nighttime working modes. Meanwhile, the system offers abundant cooling capacity and is an ideal solution to offer comfort to truck drivers.
7. It offers over or under voltage and compressor over heat auto-switch-off protection to avoid draining the battery bank to make sure the driver can start the engine at anytime.

Technical specifications
Model YXDT03A-1 YXDT03A-2
Cooling capacity 2580 Kcal/h (3.0KW, 10236 Btu)
Voltage DC12V DC24V
Standard Total Current (Daytime mode) ≤49A ≤27A
Standard Total Current (Night mode) ≤32A ≤17A
Evaporator Airflow 650m3/h
Condenser Airflow 1700m3/h
Compressor Type Totally-enclosed, DC powered and direct connecting
Displacement 20cc/r 20cc/r
Dimension 1000×730×265mm
Pressure Protection High Pressure 2.65MPa
Low Pressure 0.05MPa
Refrigerant/Charge Amount R134a/0.8kg
Applying Vehicles Commercial Vehicle, Heavy duty Vehicle

Note: Standard cartons in a shipping package.
           One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is an experienced electric truck air conditioner manufacturer and supplier, based in China. Apart from DC electric truck air conditioner, we also offer engineering vehicle air conditioner, cabinet air conditioner, bus air conditioner, recreational vehicle air conditioner, and more.
