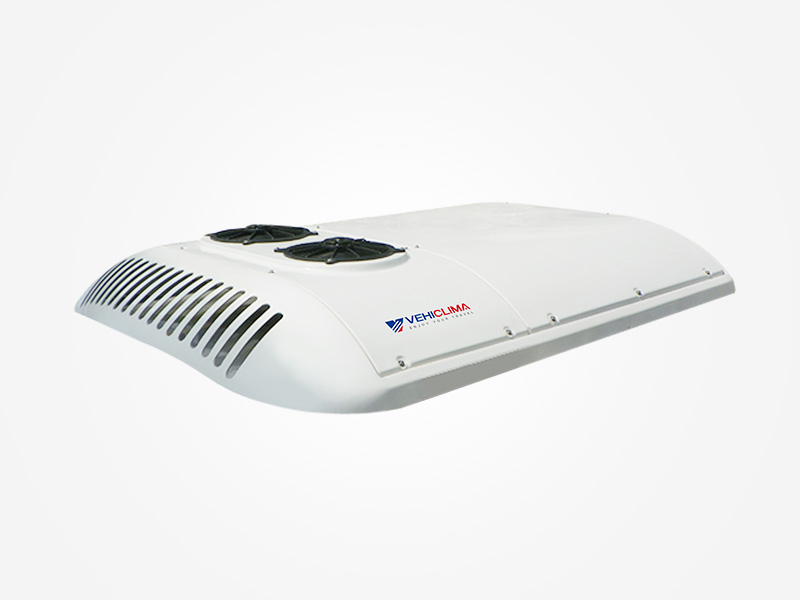

VB14B/VB16B Mini Bus Air Conditioner
- The roof-mount layout makes the mini bus air conditioner convenient to open and overhaul.
- The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
- With its high quality fiberglass epoxy resin case and cover, the mini bus air conditioner has high strength and high resistance to vibration and corrosion.
- World-brands refrigeration key parts assure the reliable working performance and super quality.
- The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
- It has abundant cooling capacity, low noise and lower power consumption. This air conditioner is used for 6-7m bus.
| Model |
|
|
|
| Standard Cooling Capacity | 14kW (12000 Kcal/h, 47615 Btu/h) | 16kW (13760 Kcal/h, 54490 Btu/h) | |
| Max Cooling Capacity | 15.7kW (13500Kcal/h, 53600 Btu/h) | 18kW (15480Kcal/h, 61300 Btu/h) | |
| Refrigerant | HFCR134a | ||
| Compressor | Model | UP200/TM21 | UX330/TM31 |
| displacement | 200cc/215cc | 330cc/313cc | |
| Evaporator | Type | Cooper Tube & Aluminum fins | |
| Blower Type | Double Axle Centrifugal Flow | ||
| Blower Quantity | 4 | ||
| Blower Output | 2800 m3/h | ||
| Condenser | Type | Cooper Tube & Aluminum fins | |
| Fan Type | Axial Flow | ||
| Fan Quantity | 2 | ||
| Fan Output | 4000 m3/h | ||
| Control System | Bus Interior Temperature | 16℃-27℃ Adjustable | |
| Defrosting Protection | 2℃ | ||
| High Pressure Protection | 2.5Mpa | ||
| Low Pressure Protection | 0.05Mpa | ||
| External Dimension | 2430×1500×220 mm | ||
| Total current | ≤32A(24V) | ||
| Applying Buses | Coaster/Rosa 6m Bus | Coaster/Rosa 7m bus, 6~7m school buses | |
Note: One year (12 months) warranty period since the date the products have been installed.
