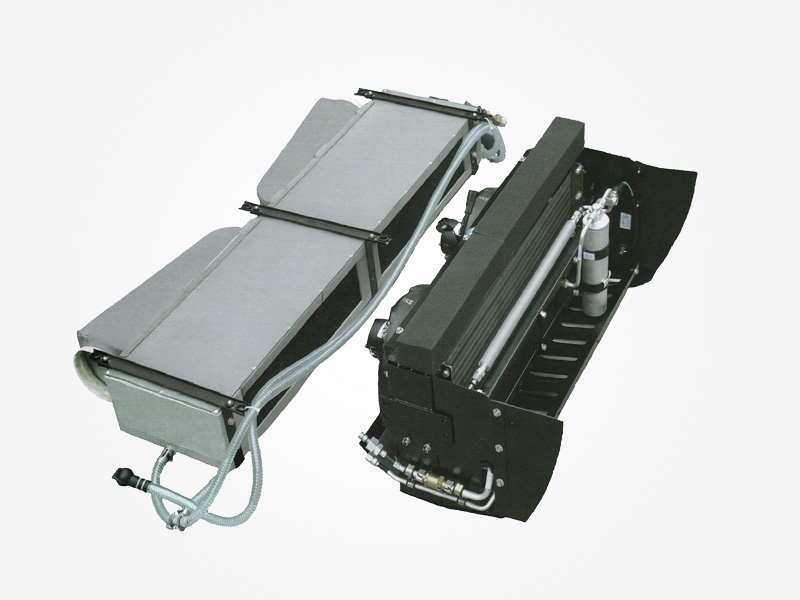

VB14IN Mini Bus Air Conditioner

VB14IN Mini Bus Air Conditioner
Features
  • As an inter-mount type air conditioner, there is no impact on the appearance of the bus.
  • With its compact design, it is easy to install.
  • The mini bus air conditioner features abundant cooling capacity, low noise, and low power consumption.
  • World-brands refrigeration key parts assure the reliable working performance and super quality.
  • The water-proof electric fittings efficiently increase the system's reliability and electric parts' lifespan.
  • With high quality fiberglass epoxy resin case and cover, the mini bus air conditioner features high strength and high resistance to vibration and corrosion. It can be used for Coaster/Rosa 7m bus.
Technical specifications
Model VB14IN
Standard Cooling Capacity 12000Kcal/h(14000W, 47520 Btu/h)
Max Cooling Capacity 12900Kcal/h(15000W, 51200 Btu/h)
Refrigerant HFCR134a
Compressor Model UX330/TM31
Displacement 330cc/313cc
Evaporator Type Copper Tube & Aluminum Fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 6
Blower Output 2400m3/h
Dimension 1290×555×230mm
Condenser Type Copper Tube & Aluminum Fins
Fan Type Axial Flow
Fan Quantity 2
Fan Output 3200 m3/h
Dimension 838×313×388mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Total current ≦33A/24V
Applying Buses Coaster/Rosa 7m bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is a professional manufacturer of mini bus air conditioner in China. In addition to bus air conditioner, we also provide other vehicle air conditioning products, including truck air conditioner, engineering vehicle air conditioner, military vehicle air conditioner, recreational vehicle air conditioner, and more.
