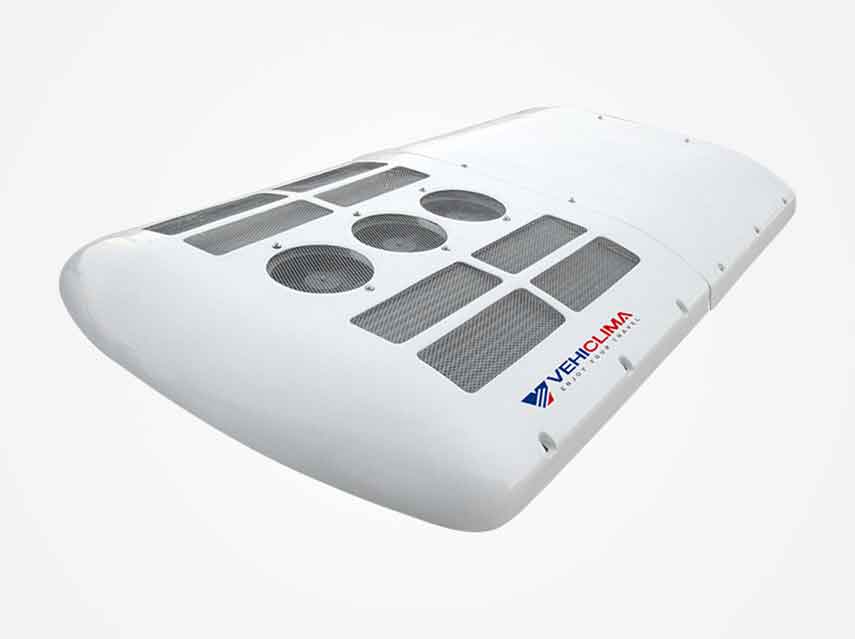

Midi Bus Air Conditioner

Features
1. The roof-mount layout makes the midi bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body.
3. With its high quality fiberglass epoxy resin case and cover, the midi bus air conditioner has high strength and high resistance to vibration and corrosion.
4. It has abundant cooling capacity, low noise and lower power consumption.
5. World-brand key parts assure the system's reliability and stability.
6. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
7. Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
8. It can be used on 6.5-7.5 bus.

Technical specifications

Model VB16
Standard Cooling Capacity 16000 Kcal/h (18.6KW,63488 Btu/h)
Max Cooling Capacity 17500Kcal/h(20340W, 69500 Btu/h)
Refrigerant HFCR134a
Compressor Brand UX330/TM31
displacement 330cc/313cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 4
Blower Output 4000 m3/h
Dimension 1722×1700×177mm
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 3
Fan Output 6000 m3/h
Dimension 1668×1700×177mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 3390×1700×177mm
Total current ≤65A(24V)
Applying Buses 7.5-8m Bus, 35 seats.

Note: One year (12 months) warranty period since the date the products have been installed.

As a China-based midi bus air conditioner manufacturer, VehiClima Industry also offers DC electric powered bus air conditioner, container truck refrigeration unit, auxiliary power unit truck air conditioner, articulated bus air conditioner, window type special vehicle air conditioner, and more.
