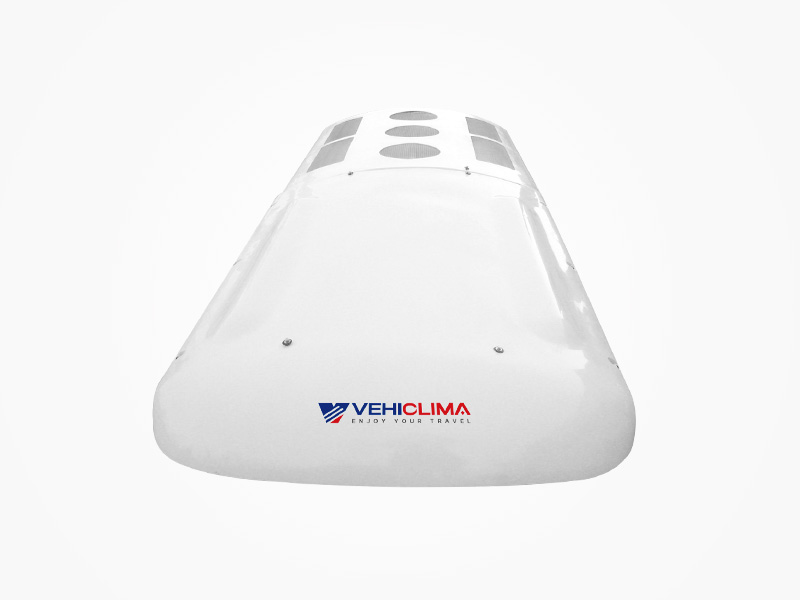

VB24N Midi Bus Air Conditioner

VB24N Midi Bus Air Conditioner
VB24N Midi Bus Air Conditioner VB24N Midi Bus Air Conditioner VB24N Midi Bus Air Conditioner VB24N Midi Bus Air Conditioner VB24N Midi Bus Air Conditioner
Features
  • The roof-mount layout makes the midi bus air conditioner convenient to open and overhaul.
  • The fashionable streamline design perfectly integrates with the bus body.
  • High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
  • It has abundant cooling capacity, low noise and lower power consumption.
  • World-brands key parts assure the system's reliability and stability.
  • The water-proof electric fittings efficiently increase the air conditioner system's reliability and lifespan of the electric parts.
  • Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
  • The midi bus air conditioner can be used on 7.5-8.2m narrow roof bus.
Technical specifications
Model VB24N
Standard Cooling Capacity 24kW (20640 Kcal/h, 81735 Btu/h)
Max Cooling Capacity 26kW (22360Kcal/h, 88545 Btu/h)
Refrigerant HFCR134a
Compressor Brand UX330/TM31
displacement 330cc/313cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 6
Blower Output 4200 m3/h
Dimension 1720×1300×190 mm
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 3
Fan Output 6000 m3/h
Dimension 1550×1300×190mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 3270×1300×190mm
Total current ≤68A(24V)
Applying Buses 7.5-8.2m narrow-roof Bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is an experienced midi bus air conditioner manufacturer in China. Apart from bus air conditioner, we also provide truck air conditioner, engineering vehicle air conditioner, recreational vehicle air conditioner, military vehicle air conditioner, transport refrigeration unit, and more.
