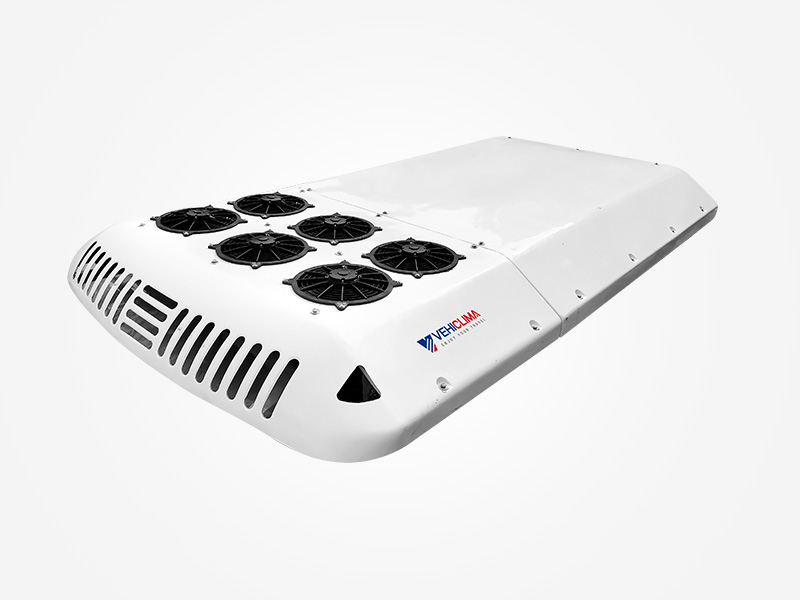

VB50B Big Bus Air Conditioner

VB50B Big Bus Air Conditioner
VB50B Big Bus Air Conditioner VB50B Big Bus Air Conditioner VB50B Big Bus Air Conditioner
Features
  • The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
  • The fashionable streamline design perfectly integrates with the blue body.
  • With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
  • It has abundant cooling capacity, low noise and lower power consumption.
  • World-brands key parts make sure the big bus air conditioner has high reliability and stability.
  • The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
  • Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
  • It can be used on 10.5-11.5m buses.
Specifications
Model VB50B
Standard Cooling Capacity 50kW (43000Kcal/h, 172000 Btu/h)
Max Cooling Capacity 55kW (47300 Kcal/h, 189200 Btu/h)
Refrigerant HFCR134a
Compressor Model 6PFCY
displacement 846cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 8
Blower Output 8000 m3/h×2
Dimension 1800×1860×237mm×2
Condenser Type Aluminum multi-flow coil
Fan Type Axial Flow
Fan Quantity 6
Fan Output 12000 m3/h
Dimension 2100×1860×232mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 4000×1920×269mm
Total current ≤125A(24V)
Applying Buses 13.7m city bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is an experienced big bus air conditioner manufacturer in China. In addition to bus air conditioner, we also offer truck air conditioner, engineering vehicle air conditioner, recreational vehicle air conditioner, window type special vehicle air conditioner, and more.
