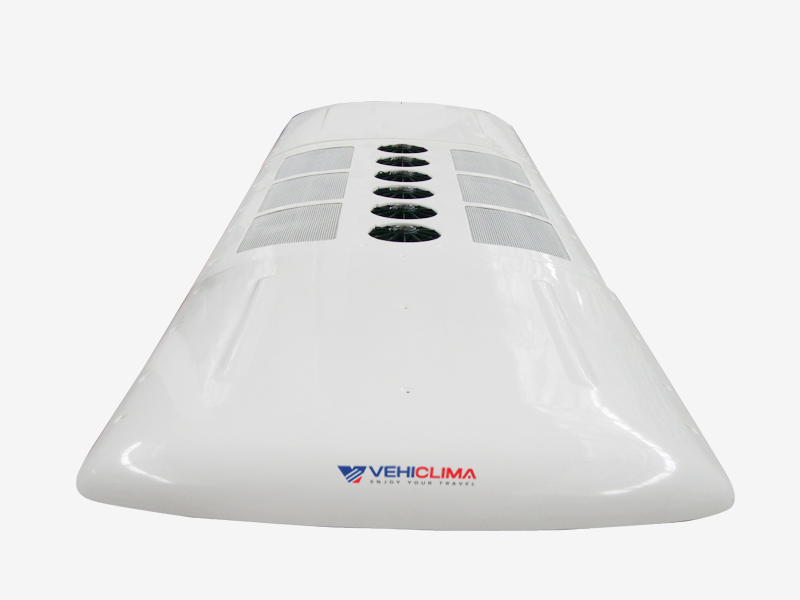

City Bus Air Conditioner

Features
1. Roof-mount layout makes convenient opening and overhauling.
2. Fashionable appearance, perfectly integrating with the blue body;
3. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
4. Abundant and substantial cooling capacity, low noisy, low power consumption.
5. World-brand key parts assure the system's reliability and stability.
6. Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
7. Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
8. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
9. Applying buses: 13-14 city bus, 14m intercity bus.

Specifications

Model VB38
Standard Cooling Capacity 38000Kcal/h
Max Cooling Capacity 40000 Kcal/h
Refrigerant HFCR134a
Compressor Model 6PFCY
displacement 846cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 4×2
Blower Output 8000 m3/h×2
Dimension 1800×1860×237mm×2
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 5
Fan Output 10000 m3/h
Dimension 2100×1860×232mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 5720×1860×237mm
Total current ≤125A(24V)
Applying Buses 13-14m Bus

Note: One year (12 months) warranty period since the date the products have been installed.

As a professional city bus air conditioner manufacturer in China, we also provide van refrigeration unit, escort vehicle air conditioner, auxiliary power unit truck air conditioner, recreational vehicle air conditioner, ambulance car air conditioner, etc.
