VB37A-P Independent Bus Air Conditioner

VB37A-P Independent Bus Air Conditioner
VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner VB37A-P Independent Bus Air Conditioner
Features

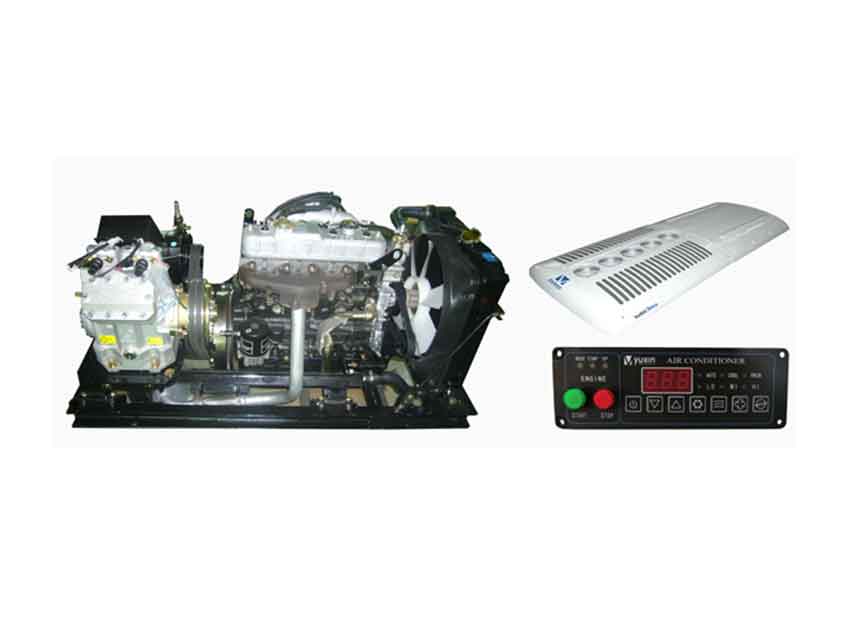

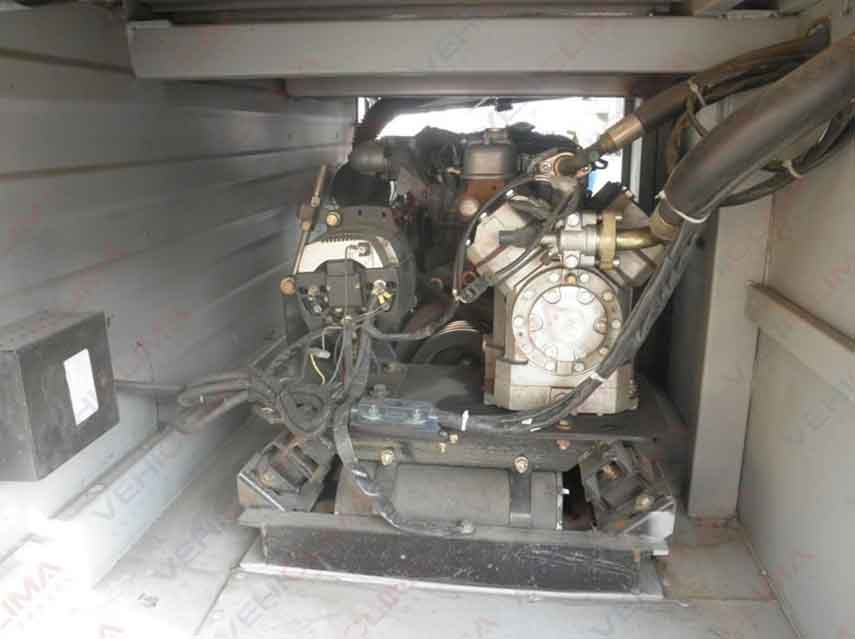

  • Adopt high quality diesel engine ISUZU 493, ensure the splendid working performance. No effect on bus running.

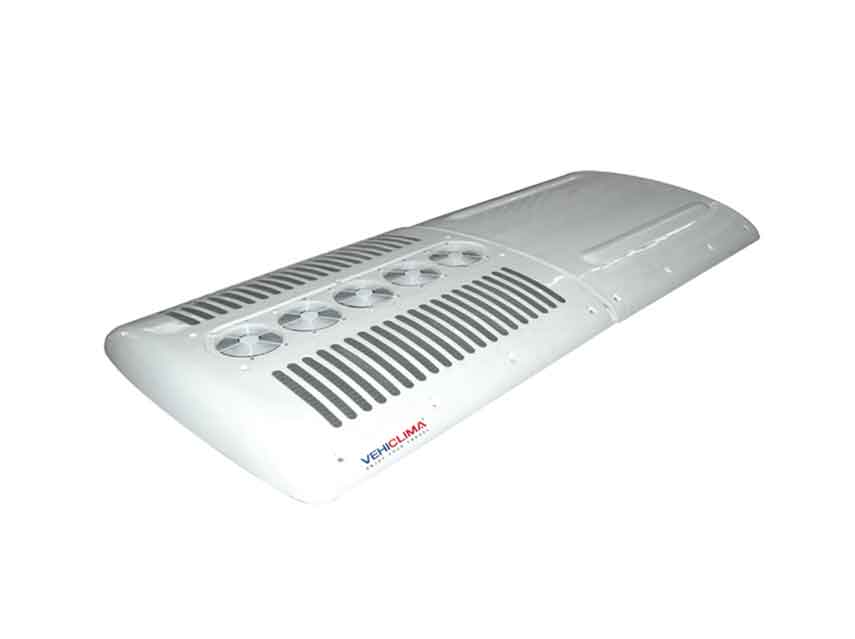

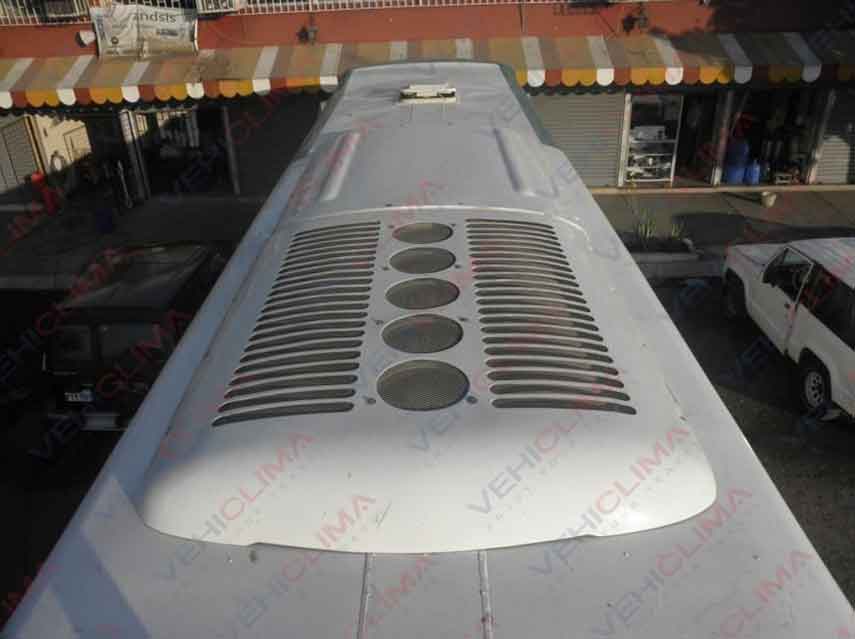

  • Roof-mount layout makes convenient opening and overhauling.
  • Fashionable appearance, perfectly integrating with the blue body;
  • High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
  • Abundant and substantial cooling capacity, low noisy, low power consumption.
  • World-brand key parts assure the system's reliability and stability.
  • Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
  • Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
  • The Independent bus air conditioner is applying for 11-12m meters large buses.
Specifications
Model VB37A-P (Independent Unit)
Standard Cooling Capacity 37kW (31820Kcal/h, 127280 Btu/h)
Max Cooling Capacity 40kW (34400 Kcal/h, 137600 Btu/h)
Refrigerant HFCR134a
Compressor Model 4NFCY
displacement 647cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 8
Blower Output 8000 m3/h
Dimension 2387×1862×190 mm
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 5
Fan Output 10000 m3/h
Dimension 2338×1862×190 mm

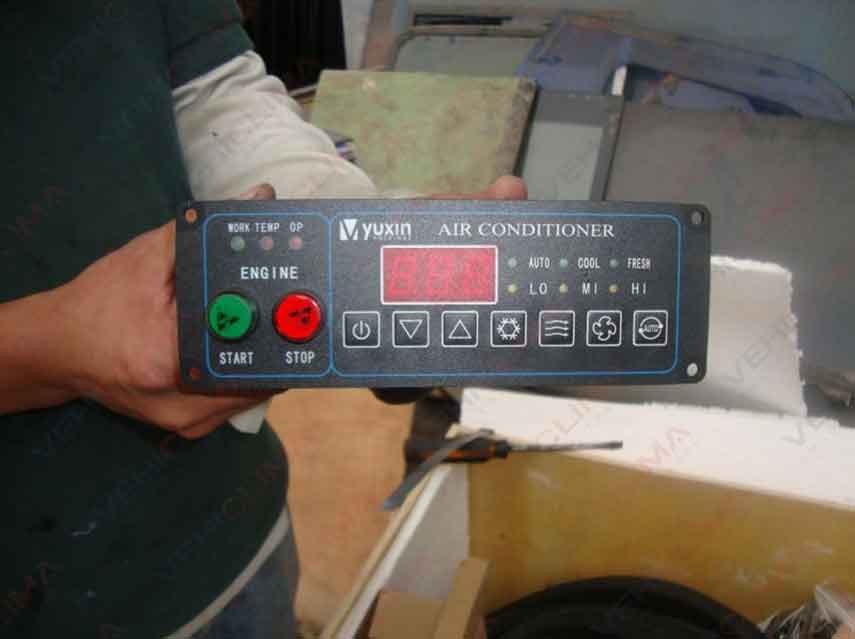

Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 4400×1862×190mm
Total current ≤110A(24V)
Applying Buses 11-12m Bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is a professional independent bus air conditioner manufacturer in China. In addition to bus air conditioner, we also provide other vehicle air conditioning products, such as cabinet air conditioner, military vehicle air conditioner, transport refrigeration unit, window type special vehicle air conditioner, and more.
