VB40A-P Independent Bus Air Conditioner

VB40A-P Independent Bus Air Conditioner
VB40A-P Independent Bus Air Conditioner VB40A-P Independent Bus Air Conditioner VB40A-P Independent Bus Air Conditioner

Features

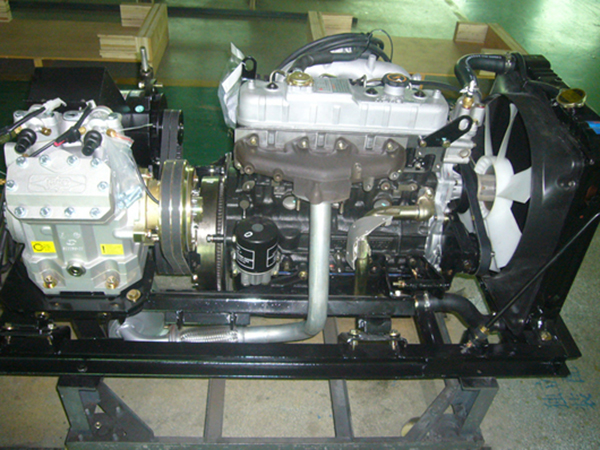

1. Adopt high quality diesel engine ISUZU 493, ensure the splendid working performance. No effect on bus running.

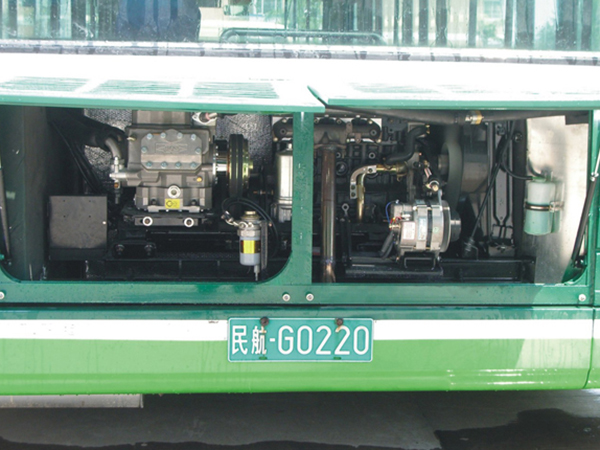

2. Roof-mount layout makes convenient opening and overhauling.
3. Fashionable appearance, perfectly integrating with the blue body;
4. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
5. Abundant and substantial cooling capacity, low noisy, low power consumption.
6. World-brand key parts assure the system's reliability and stability.
7. Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
8. Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
9. The Independent bus air conditioner is applyed in mountainous regions for 13-14 meters city buses, intercity buses, and airport shuttle buses.

Technical specifications
Model VB40A-P (Independent Unit)
Standard Cooling Capacity 40kW (34400Kcal/h, 137600 Btu/h)
Max Cooling Capacity 44kW (37840 Kcal/h, 151360 Btu/h)
Refrigerant HFCR134a
Compressor Model 4NFCY
displacement 647cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 8
Blower Output 8000 m3/h
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 6
Fan Output 12000 m3/h
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 5060×1862×190mm
Total current ≤118A(24V)
Applying Buses 12m City Bus

Note: One year (12 months) warranty period since the date the products have been installed.

As a professional independent bus air conditioner manufacturer and supplier in China, we also offer container truck refrigeration unit, rooftop mount truck air conditioner, DC electric truck air conditioner, van refrigeration unit, ambulance car air conditioner, etc.
