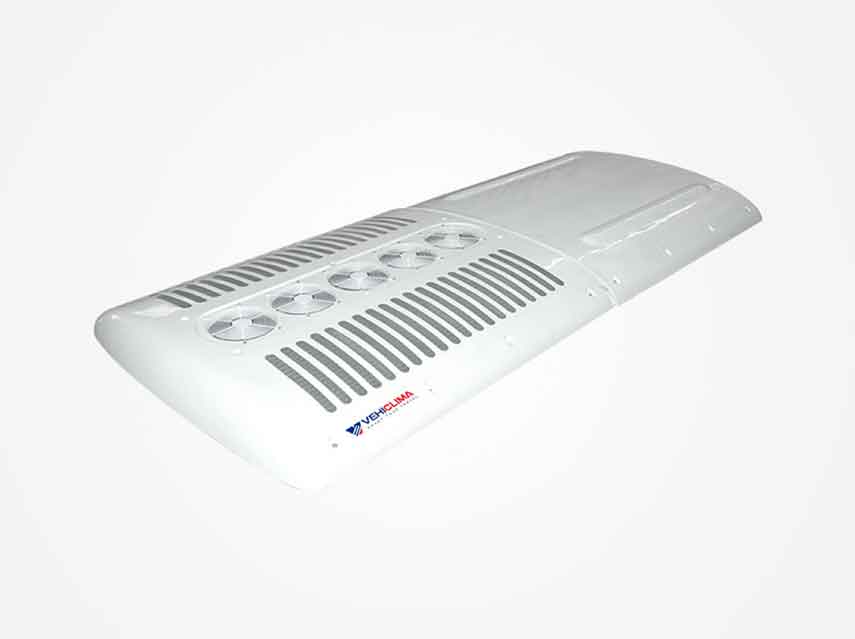

VB37A Big Bus Air Conditioner

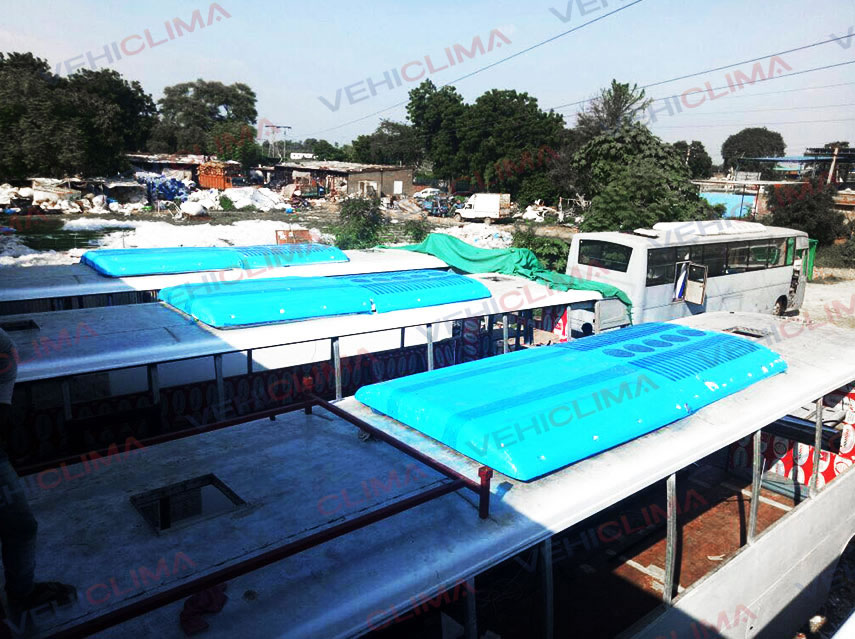

Features- The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
- The fashionable streamline design perfectly integrates with the blue body.
- With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
- It has abundant cooling capacity, low noise and lower power consumption.
- World-brands key parts assure the system's reliability and stability.
- The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
- Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.

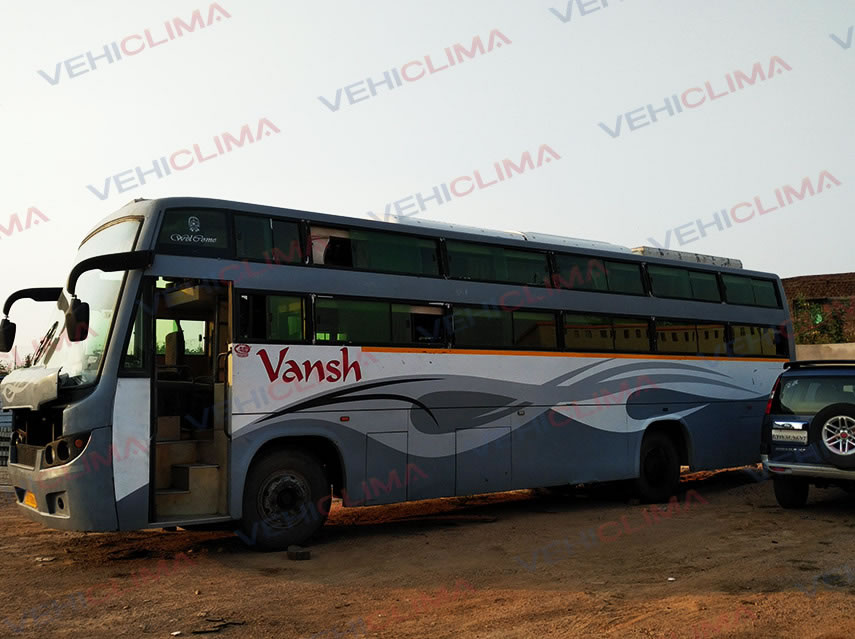

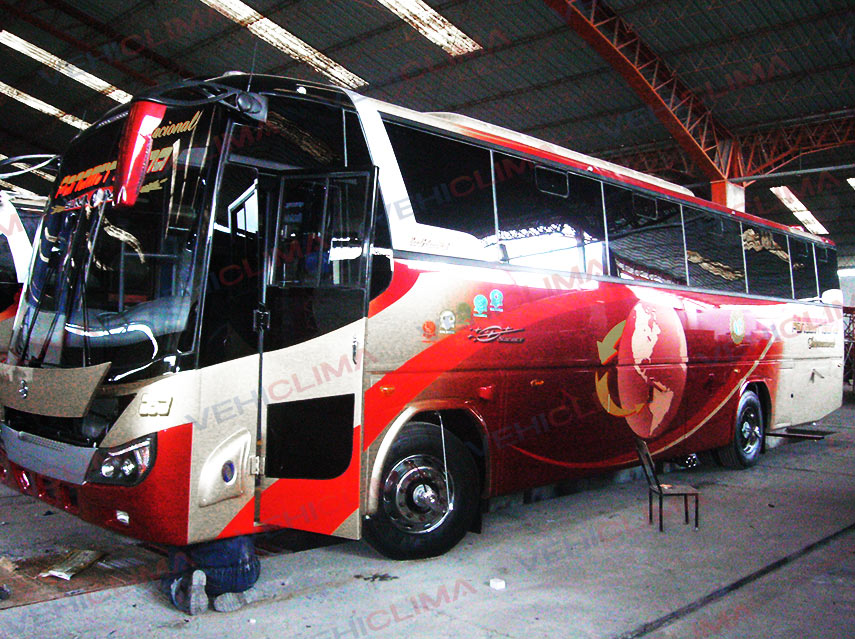

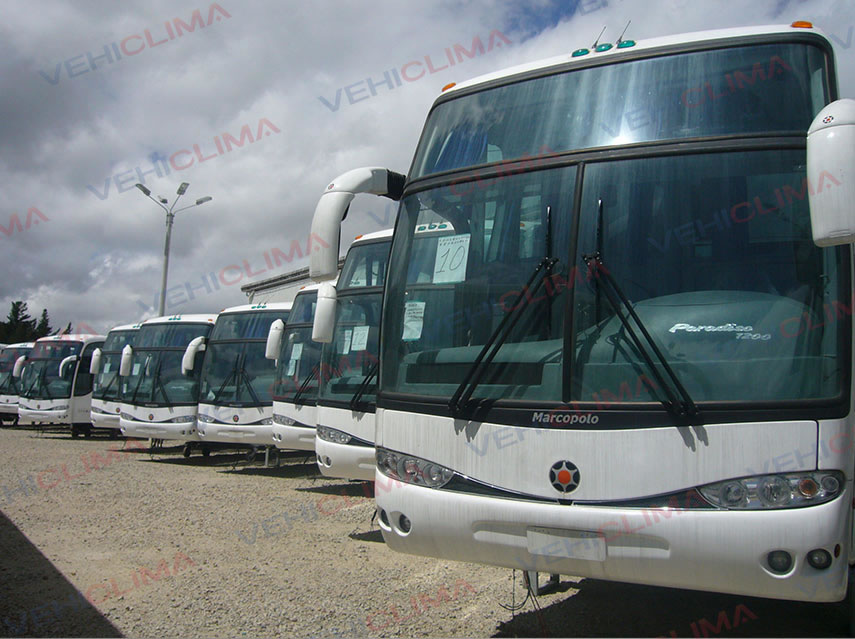

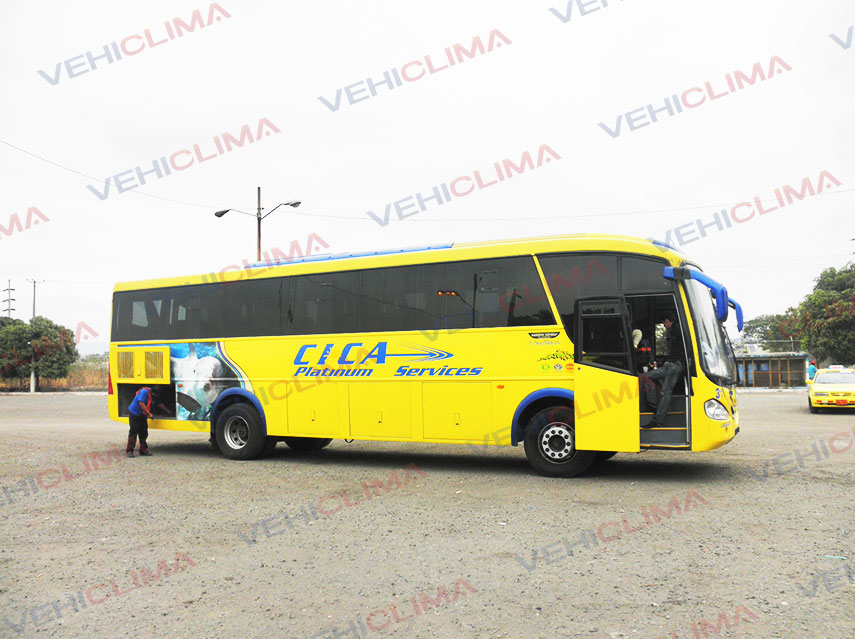

- The big bus air conditioner can be used on 12m intercity buses, 12m tour coaches and 11m city buses.
Model | VB37A | |
Standard Cooling Capacity | 37kW (31820Kcal/h, 127280 Btu/h) | |
Max Cooling Capacity | 40kW (34400 Kcal/h, 137600 Btu/h) | |
Refrigerant | HFCR134a | |
Compressor | Model | 4NFCY |
displacement | 647cc | |
Evaporator | Type | Cooper Tube & Aluminium fins |
Blower Type | Double Axle Centrifugal Flow | |
Blower Quantity | 8 | |
Blower Output | 8000 m3/h | |
Dimension | 2387×1862×190 mm | |
Condenser | Type | Cooper Tube & Aluminium fins |
Fan Type | Axial Flow | |
Fan Quantity | 5 | |
Fan Output | 10000 m3/h | |
Dimension | 2338×1862×190 mm | |
Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
Defrosting Protection | 2℃ | |
High Pressure Protection | 2.5Mpa | |
Low Pressure Protection | 0.05Mpa | |
Fresh Air Exchange Rate | 25% | |
External Dimension | 4400×1862×190mm | |
Total current | ≤110A(24V) | |
Applying Buses | 11-12m Bus |
Note: One year (12 months) warranty period since the date the products have been installed.
As a Chinese manufacturer of big bus air conditioner, VehiClima Industry also provides auxiliary power unit truck air conditioner, DC electric truck air conditioner, van refrigeration unit, rooftop mount air conditioner, etc.
