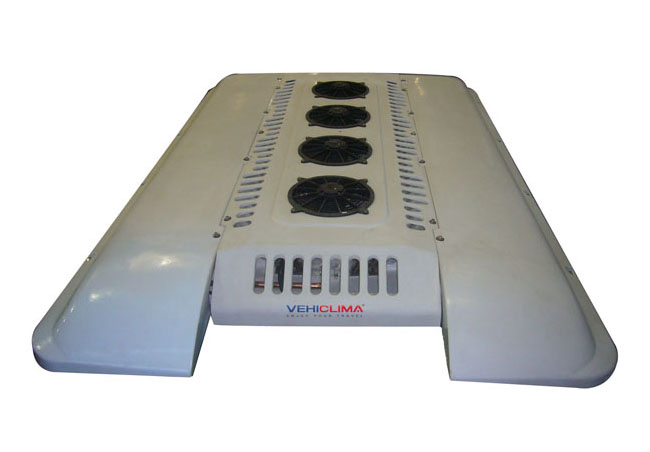

City Bus Air Conditioner

Features
1. Roof-mount layout makes convenient opening and overhauling. Compact design, make it perfect to equip the CNG city buses.
2. Fashionable appearance, perfectly integrating with the blue body;
3. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
4. Abundant and substantial cooling capacity, low noisy, low power consumption.
5. World-brand key parts assure the system's reliability and stability.
6. Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
7. Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
8. Applying buses: 10-11m city bus, especially for CNG city bus.

Specifications

Model VB28C
Standard Cooling Capacity 28000Kcal/h
Max Cooling Capacity 30000 Kcal/h
Refrigerant HFCR134a
Compressor Model Bitzer 4NFCY
Displacement 647cc
Evaporator Type Copper Tube & Aluminium Fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 8
Blower Output 8000 m3/h
Condenser Type Copper Tube & Aluminium Fins
Fan Type Axial Flow
Fan Quantity 4
Fan Output 8000 m3/h
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
External Dimension 2893×1933×250mm
Total current ≤100A(24V)
Applying Buses 10-11m City Bus, 10-11.5m Intercity Bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is an experienced city bus air conditioner manufacturer in China. Apart from bus air conditioner, our vehicle air conditioning products also include transport refrigeration unit, truck air conditioner, engineering vehicle air conditioner, recreational vehicle air conditioner, and more.
