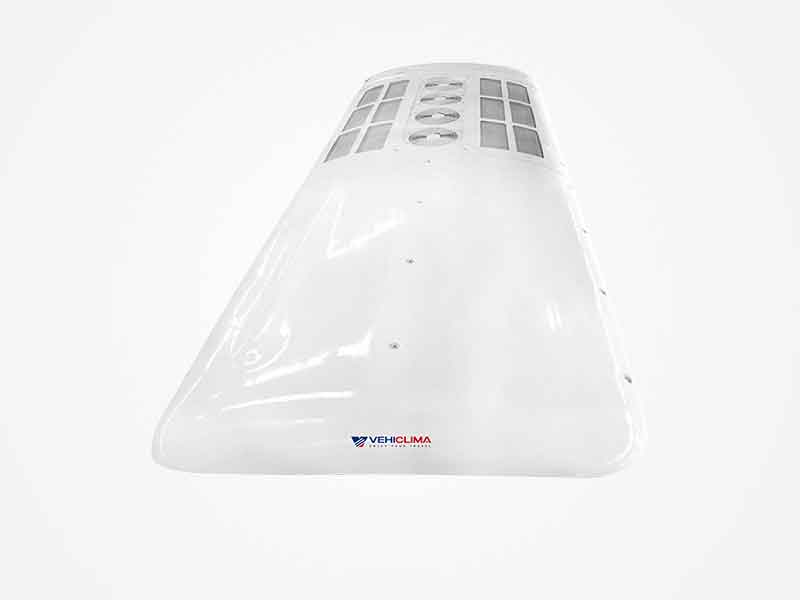

Articulated Bus Air Conditioner

Features
1. Roof-mount layout makes convenient opening and overhauling.
2. Fashionable appearance, perfectly integrating with the blue body;
3. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
4. Abundant and substantial cooling capacity, low noisy, low power consumption.
5. World-brand key parts assure the system's reliability and stability.
6. Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
7. Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.

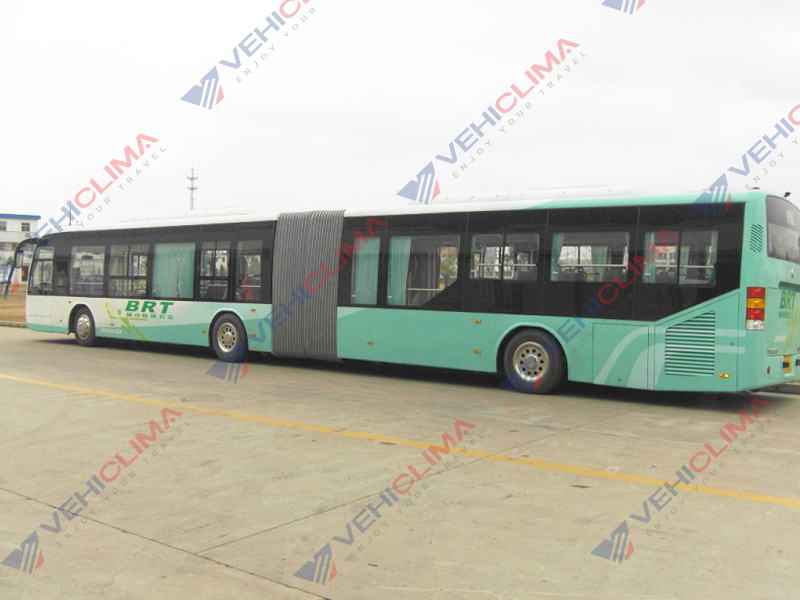

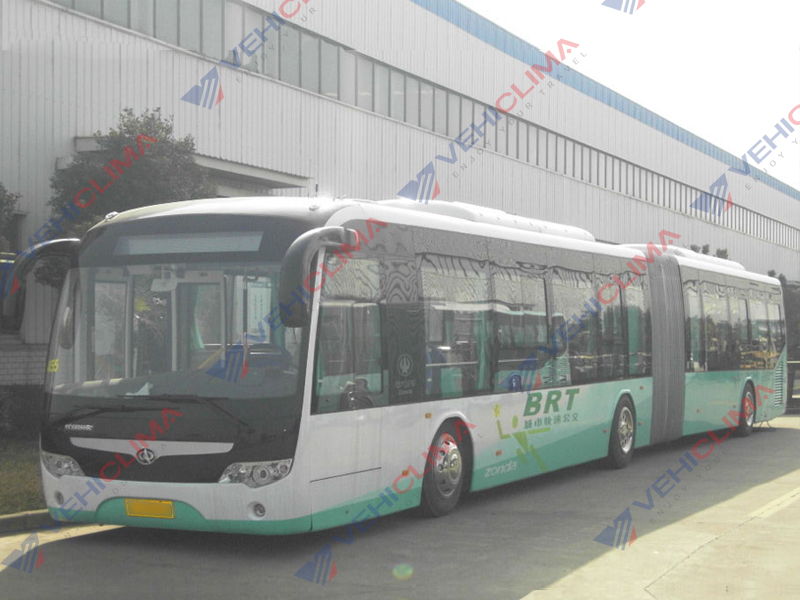

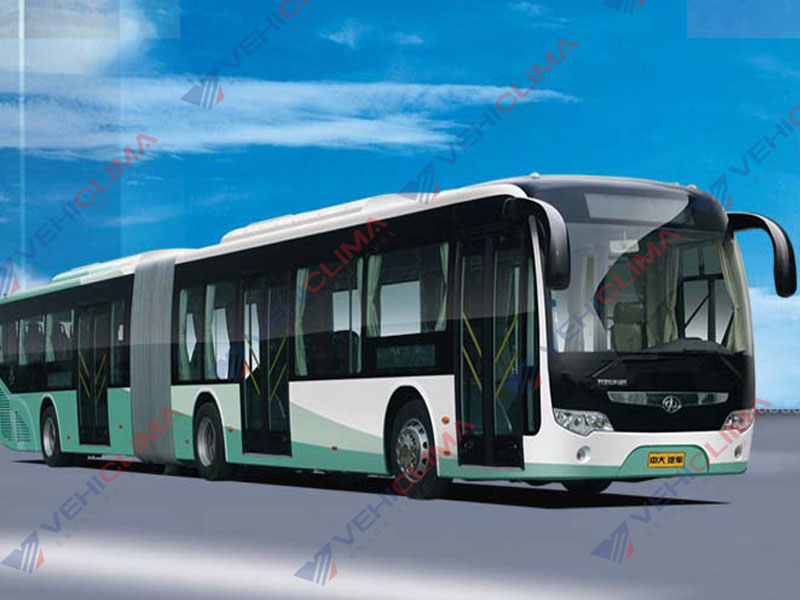

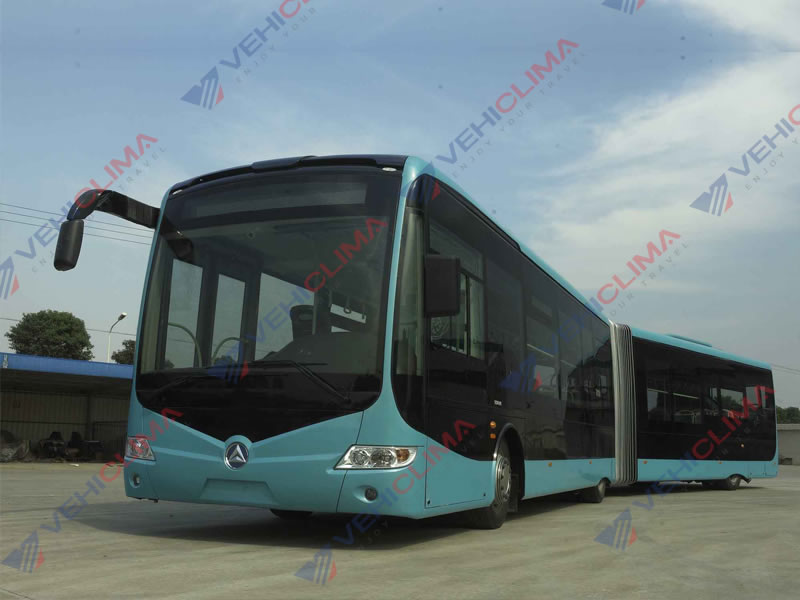

8. VB52 articulated bus air conditioner is applying for 16-18m articulated BRT city bus.

Technical specifications

Model VB52 (VB26*2)
Standard Cooling Capacity 26000Kcal/h
Max Cooling Capacity 28000 Kcal/h
Refrigerant HFCR134a
Compressor Model 6PFCY
displacement 836cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 6
Blower Output 6000 m3/h
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 4
Fan Output 8000 m3/h
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 2595×1900×250mm
Total current ≤100A(24V)
Applying Buses 16-18m Articulated City Bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is a professional articulated bus air conditioner manufacturer in China. In addition to bus air conditioner, our vehicle air conditioning products also include transport refrigeration unit, truck air conditioner, engineering vehicle air conditioner, recreational vehicle air conditioner, and more.
