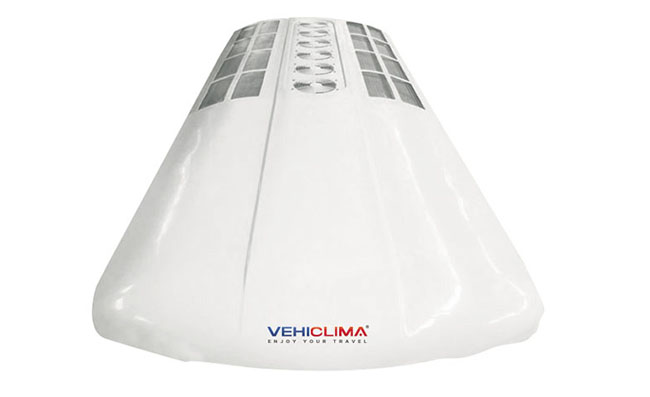

City Bus Air Conditioner
Features
1. Roof-mount layout makes convenient opening and overhauling.
2. Fashionable appearance, perfectly integrating with the blue body;
3. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
4. Abundant and substantial cooling capacity, low noisy, low power consumption.
5. World-brand key parts assure the system's reliability and stability.
6. Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
7. Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
8. High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
9. Applying buses: 12-14m city bus, 13-14m intercity bus.
Specifications
Model | VB34 | |
Standard Cooling Capacity | 32000Kcal/h (37.3KW, 126970 Btu/h ) | |
Max Cooling Capacity | 34000 Kcal/h | |
Refrigerant | HFCR134a | |
Compressor | Model | 4NFCY |
displacement | 647cc | |
Evaporator | Type | Cooper Tube & Aluminium fins |
Blower Type | Double Axle Centrifugal Flow | |
Blower Quantity | 8 | |
Blower Output | 8000 m3/h | |
Condenser | Type | Cooper Tube & Aluminium fins |
Fan Type | Axial Flow | |
Fan Quantity | 5 | |
Fan Output | 10000 m3/h | |
Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
Defrosting Protection | 2℃ | |
High Pressure Protection | 2.5Mpa | |
Low Pressure Protection | 0.05Mpa | |
Fresh Air Exchange Rate | 25% | |
External Dimension | 3225×1933×243mm | |
Total current | ≤118A(24V) | |
Applying Buses | 12-14m City Bus |
Note: One year (12 months) warranty period since the date the products have been installed.
