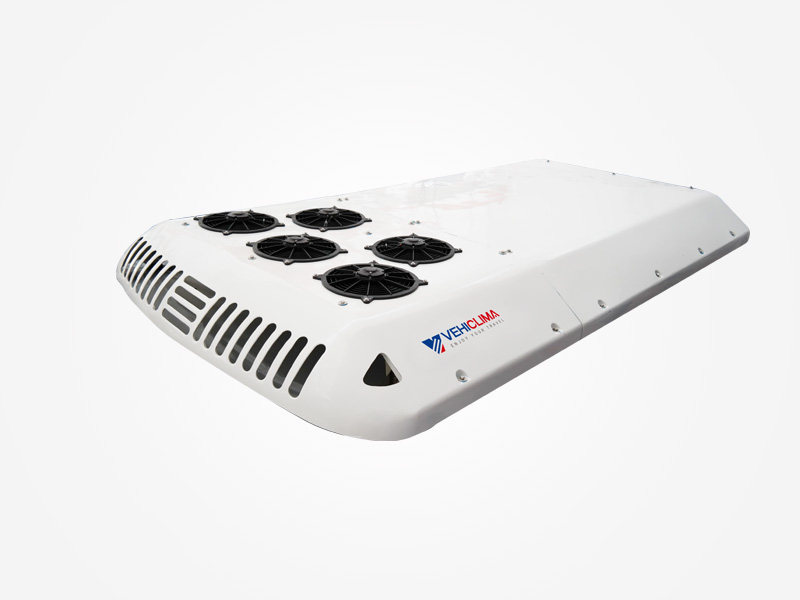

VB37B Big Bus Air Conditioner

B37B Big Bus Air Conditioner
B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner B37B Big Bus Air Conditioner
Features
  • The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
  • The fashionable streamline design perfectly integrates with the bus body.
  • With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
  • It has abundant cooling capacity, low noise and lower power consumption.
  • World-brands key parts assure the system's reliability and stability.
  • The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
  • Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
  • The big bus air conditioner can be used on 10-10.5m buses.
Specifications
Model VB37B
Standard Cooling Capacity 37kW (31820Kcal/h, 127280 Btu/h)
Max Cooling Capacity 40kW (34400 Kcal/h, 137600 Btu/h)
Refrigerant HFCR134a
Compressor Model 4NFCY
displacement 647cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 8
Blower Output 8000 m3/h
Condenser Type Aluminum multi-flow coil
Fan Type Axial Flow
Fan Quantity 5
Fan Output 10000 m3/h
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 3370×1920×269mm
Total current ≤110A(24V)
Applying Buses 11-12m Bus

Note: One year (12 months) warranty period since the date the products have been installed.

As a Chinese manufacturer of big bus air conditioner, VehiClima Industry also provides auxiliary power unit truck air conditioner, DC electric truck air conditioner, van refrigeration unit, rooftop mount air conditioner, etc.

Related Products
  • VB32A Big Bus Air Conditioner
  • VB32B Big Bus Air Conditioner
  • VB37A Big Bus Air Conditioner
  • VB37B Big Bus Air Conditioner
  • VB40A City Bus Air Conditioner
  • VB40B Big Bus Air Conditioner
  • VB50A Big Bus Air Conditioner
  • VB50B Big Bus Air Conditioner
Send Inquiry
Other Products
    1. Bus Air Conditioner

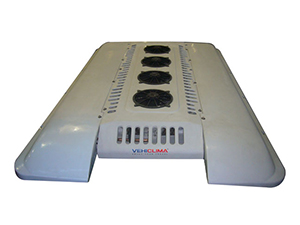

    2. VB40A City Bus Air ConditionerWater -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
