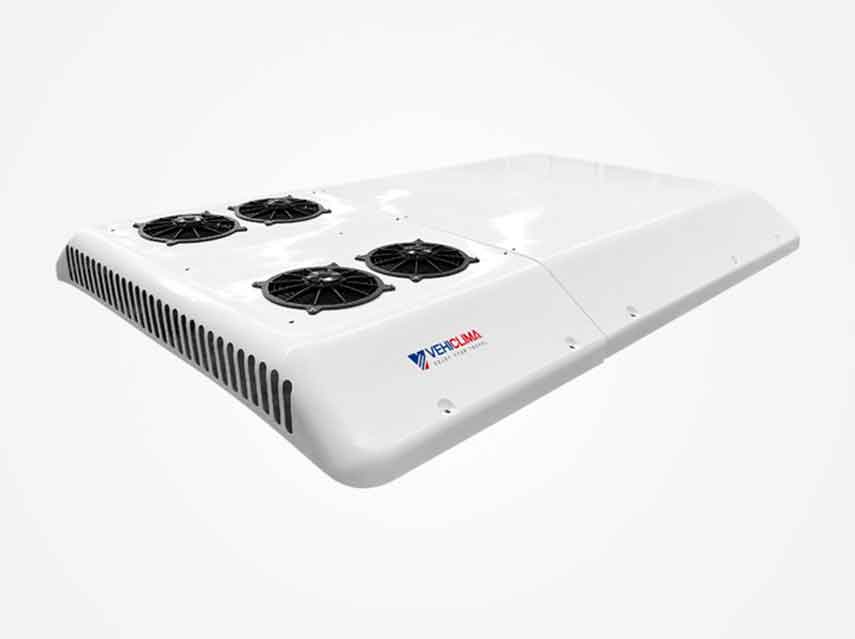

VB32B Big Bus Air Conditioner
Features- The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
- The fashionable streamline design perfectly integrates with the bus body.
- With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
- It has abundant cooling capacity, low noise and lower power consumption.
- World-brands key parts assure the system's reliability and stability.
- The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
- Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
- The big bus air conditioner can be used on 10-10.5m buses.
Model | VB32B | |
Standard Cooling Capacity | 28000Kcal/h (32.55kW, 110880Btu/h) | |
Max Cooling Capacity | 30000Kcal/h(34900W, 120000 Btu/h) | |
Refrigerant | HFCR134a | |
Compressor | Model | 4NFCY |
displacement | 647cc | |
Evaporator | Type | Cooper Tube & Aluminium fins |
Blower Type | Double Axle Centrifugal Flow | |
Blower Quantity | 6 | |
Blower Output | 6000 m3/h | |
Condenser | Type | Aluminum multi-flow coil |
Fan Type | Axial Flow | |
Fan Quantity | 4 | |
Fan Output | 8000 m3/h | |
Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
Defrosting Protection | 2℃ | |
High Pressure Protection | 2.5Mpa | |
Low Pressure Protection | 0.05Mpa | |
Fresh Air Exchange Rate | 25% | |
External Dimension | 2900×1920×269mm | |
Total current | ≤100A(24V) | |
Applying Buses | 10.5 - 11m big bus |
Note: One year (12 months) warranty period since the date the products have been installed.
VehiClima Industry is a China big bus air conditioner manufacture. Apart from bus air conditioner, we also offer recreational vehicle air conditioner, military vehicle air conditioner, cabinet air conditioner, window type special vehicle air conditioner, heater of vehicle heating system, and more.
