VB50B-P Independent Bus Air Conditioner

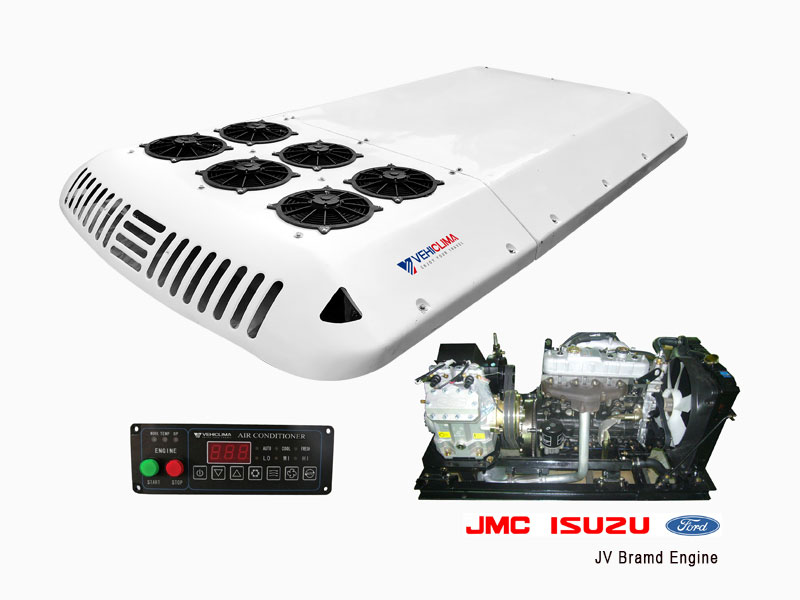

Features- Adopt high quality diesel engine ISUZU 493, ensure the splendid working performance. No effect on bus running.
- Roof-mount layout makes convenient opening and overhauling.
- Fashionable appearance, perfectly integrating with the blue body;
- High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
- Abundant and substantial cooling capacity, low noisy, low power consumption.
- World-brand key parts assure the system's reliability and stability.
- Water -proof connectors efficiently increase the system's reliability and electric parts' lifespan.
- Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
- The Independent bus air conditioner is applying for 11-12m meters large buses.
Model | VB50B-P (Independent Unit) | |
Standard Cooling Capacity | 50kW (43000Kcal/h, 172000 Btu/h) | |
Max Cooling Capacity | 55kW (47300 Kcal/h, 189200 Btu/h) | |
Refrigerant | HFCR134a | |
Compressor | Model | 6PFCY |
displacement | 846cc | |
Evaporator | Type | Cooper Tube & Aluminium fins |
Blower Type | Double Axle Centrifugal Flow | |
Blower Quantity | 8 | |
Blower Output | 8000 m3/h×2 | |
Dimension | 1800×1860×237mm×2 | |
Condenser | Type | Aluminum multi-flow coil |
Fan Type | Axial Flow | |
Fan Quantity | 6 | |
Fan Output | 12000 m3/h | |
Dimension | 2100×1860×232mm | |
Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
Defrosting Protection | 2℃ | |
High Pressure Protection | 2.5Mpa | |
Low Pressure Protection | 0.05Mpa | |
Fresh Air Exchange Rate | 25% | |
External Dimension | 4000×1920×269mm | |
Total current | ≤125A(24V) | |
Applying Buses | 13.7m city bus |
Note: One year (12 months) warranty period since the date the products have been installed.
As a professional independent bus air conditioner manufacturer and supplier in China, we also offer container truck refrigeration unit, rooftop mount truck air conditioner, DC electric truck air conditioner, van refrigeration unit, ambulance car air conditioner, etc.
