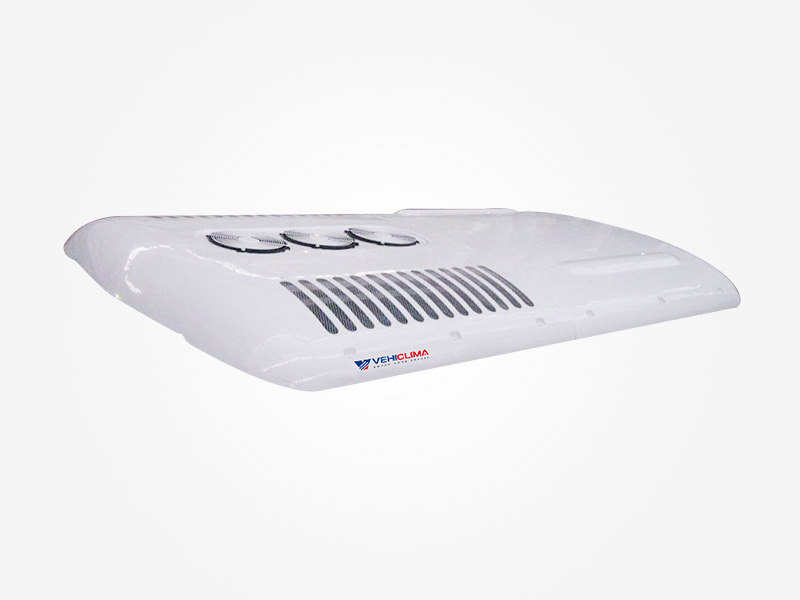

Midi Bus Air Conditioner

Features
1. The roof-mount layout makes the midi bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body.
3. With its high quality fiberglass epoxy resin case and cover, the midi bus air conditioner has high strength and high resistance to vibration and corrosion.
4. It has abundant cooling capacity, low noise and lower power consumption.
5. World-brands key parts assure the system's reliability and stability.
6. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts..
7. Universal parts' application leads maintaining interchangeability, lowering after-sales service costs..

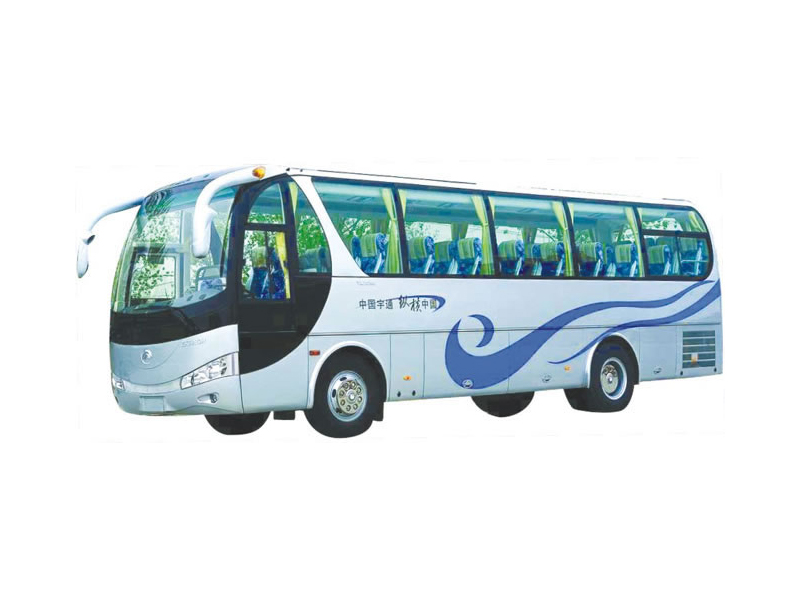

8. This unit is applied to narrow-roof 9.5-10.5m bus.

Technical specifications

Model VB22N
Standard Cooling Capacity 26000Kcal/h(30200W, 103000BTU)
Max Cooling Capacity 28000Kcal/h(32540W, 111100BTU)
Refrigerant HFCR134a
Compressor Model Bitzer 4NFCY
Displacement 647cc
Evaporator Type Copper Tube & Aluminum Fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 6
Blower Output 6000m3/h
Dimension 2040×1700×185mm
Condenser Type Copper Tube & Aluminum Fins
Fan Type Axial Flow
Fan Quantity 4
Fan Output 8000 m3/h
Dimension 1895×1700×185mm
Control System Bus Interior Temperature 15℃-30℃ adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 3935×1700×185mm
Total Current ≦100A/24V
Applying Buses 9.5-10.5m bus

Note: One year (12 months) warranty period since the date the products have been installed.

As a midi bus air conditioner manufacturer in China, VehiClima Industry also offers air duct mount air conditioner, rooftop mount truck air conditioner, container truck refrigeration unit, APU truck air conditioner, and more.
