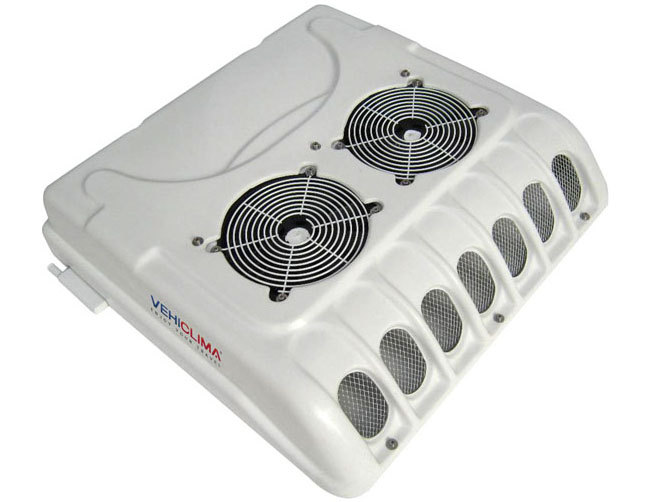

Rooftop Mount Air Conditioner VH32D

Rooftop Mount Air Conditioner VH32D
Rooftop Mount Air Conditioner VH32D Rooftop Mount Air Conditioner VH32D
Features
  • OEM supply for Liugong, Xugong, Sanyi, Xiagong, Changgong, etc.
  • The roof-mount layout makes convenient opening and overhauling.
  • It has a fashionable appearance, perfectly integrating with the blue body.
  • With high quality fiberglass epoxy resin case and cover, this rooftop mount air conditioner features high strength and high resistance to vibration and corrosion.
  • It offers an abundant and substantial cooling capacity, low noise, and low power consumption.
  • Top quality parts assure the rooftop mount air conditioner's reliability and stability.
  • The water -proof connectors efficiently increase the system's reliability and lifespan of the electric parts.
  • The rooftop mount air conditioner uses universal parts, which lead maintaining interchangeability, lowering after-sales service costs.
Main Technical Specifications
Model VH32D
Cooling Capacity 4500Kcal/h (5.25W, 18000BTU)
Type Roof-mounted, one-body system
Refrigerant HFCR134a
Compressor Model TM16
Displacement 162cc
Weight 7.1Kg
Evaporator Type Cooper Tube & Aluminum fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 2
Blower Output 650 m3/h
Condenser Type Cooper Tube & Aluminum fins
Fan Type Axial Flow
Fan Quantity 2
Fan Output 1800 m3/h
Voltage DC24V/12V
Weight 53 Kg
Overall Dimension 743*735*190mm
Total current ≤20A/24V

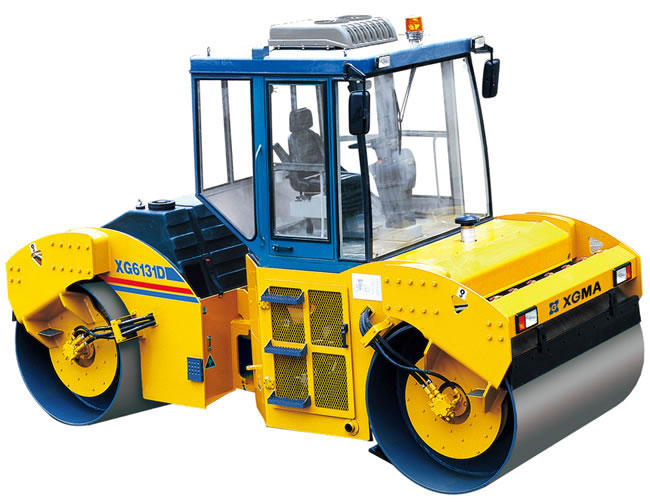

Applying Vehicle Truck, tractor, machinery cabin, Heavy duty vehicle

Note: Standard cartons in shipping package.
For all VehiClima Industry products we offer a one year warranty.

VehiClima Industry is an experienced rooftop mount air conditioner manufacturer in China. Apart from engineering vehicle air conditioner, our vehicle air conditioning products also include military vehicle air conditioner, transport refrigeration unit, truck air conditioner, bus air conditioner, recreational vehicle air conditioner, and more.
