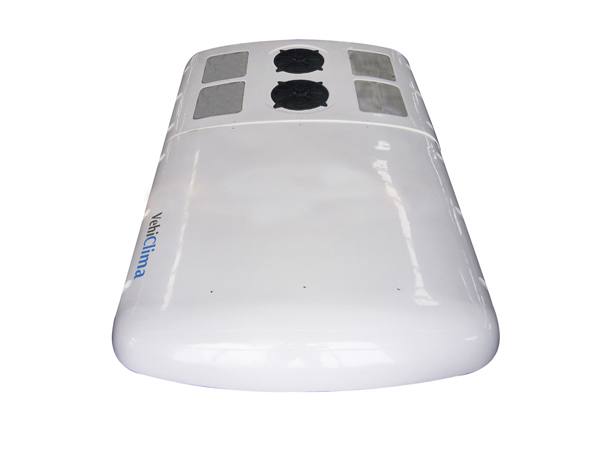

Mini Bus Air Conditioner
This product has been discontinued and removed from our shelves.
Features
1. The roof-mount layout makes the mini bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
3. The mini bus air conditioner has abundant cooling capacity, low noise, and low power consumption.
4. World-brands refrigeration key parts assure the reliable working performance and super quality.
5. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
6. With its high quality fiberglass epoxy resin case and cover, the mini bus air conditioner features high strength and high resistance to vibration and corrosion. It is used for 6-7m bus.
| Model | VB12A | |
| Standard Cooling Capacity | 12000 Kcal/h (14kw,47616 Btu/h) | |
| Max Cooling Capacity | 13500Kcal/h(15700W, 53600 Btu/h) | |
| Refrigerant | HFCR134a | |
| Compressor | Model | UX300/TM31 |
| displacement | 330cc/313cc | |
| Evaporator | Type | Cooper Tube & Aluminum fins |
| Blower Type | Double Axle Centrifugal Flow | |
| Blower Quantity | 4 | |
| Blower Output | 2800 m3/h | |
| Condenser | Type | Cooper Tube & Aluminum fins |
| Fan Type | Axial Flow | |
| Fan Quantity | 2 | |
| Fan Output | 4000 m3/h | |
| Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
| Defrosting Protection | 2℃ | |
| High Pressure Protection | 2.5Mpa | |
| Low Pressure Protection | 0.05Mpa | |
| External Dimension | 2430×1500×220 mm | |
| Total current | ≤48A/24V | |
| Applying Buses | 6-7m Bus | |
Note: One year (12 months) warranty period since the date the products have been installed.
VehiClima Industry is an experienced mini bus air conditioner manufacturer in China. Apart from bus air conditioner, we also offer transport refrigeration unit, military vehicle air conditioner, truck air conditioner, engineering vehicle air conditioner, recreational vehicle air conditioner, and more.
-
