Mini Bus Air Conditioner
This product has been discontinued and removed from our shelves.
Features
1. This is an internal-mount type air conditioner with a compact design. It is easy to install.
2. World-brands refrigeration key parts assure the reliable working performance and super quality.
3. The water-proof electric fittings efficiently increase the system's reliability.
4. The mini bus air conditioner features abundant cooling capacity, low noise and low power consumption. It is used for Coaster/Rosa 7m bus.
| Model | VB12CT | |
| Standard Cooling Capacity | 12000Kcal/h(14000W, 47520 Btu/h) | |
| Max Cooling Capacity | 12900Kcal/h(15000W, 51200 Btu/h) | |
| Refrigerant | HFCR134a | |
| Compressor | Model | UX330/TM31 |
| Displacement | 330cc/313cc | |

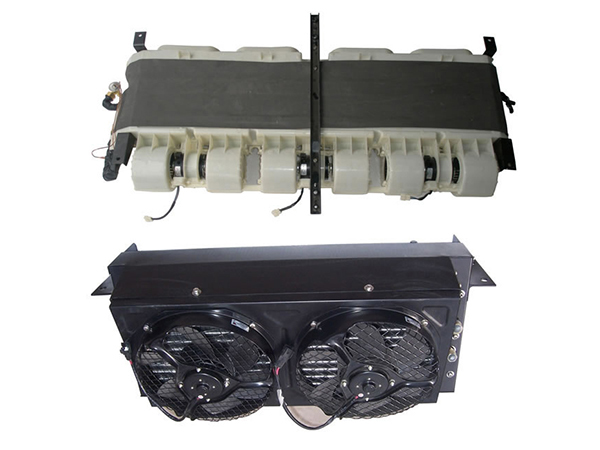

| Evaporator | Type | Copper Tube & Aluminum Fins |
| Blower Type | Double Axle Centrifugal Flow | |
| Blower Quantity | 6 | |
| Blower Output | 2400m3/h | |
| Dimension | 1290×555×230mm | |
| Condenser | Type | Copper Tube & Aluminum Fins |
| Fan Type | Axial Flow | |
| Fan Quantity | 2 | |
| Fan Output | 3200 m3/h | |
| Dimension | 838×313×388mm | |
| Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
| Defrosting Protection | 2℃ | |
| High Pressure Protection | 2.5Mpa | |
| Low Pressure Protection | 0.05Mpa | |
| Total current | ≦33A/24V | |
| Applying Buses | Coaster/Rosa 7m bus | |
Note: One year (12 months) warranty period since the date the products have been installed.
