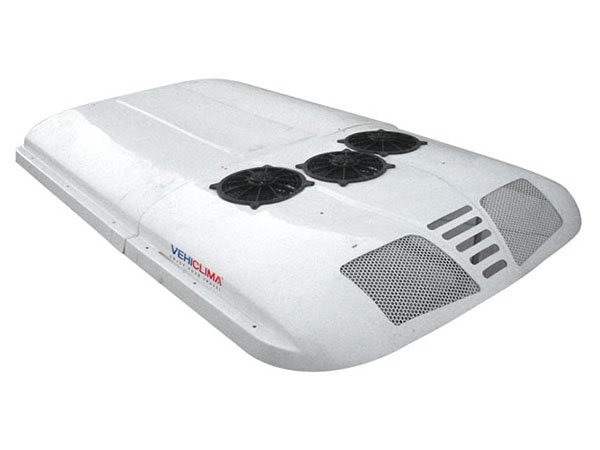

Mini Bus Air Conditioner
Features
1. The roof-mount layout makes the midi bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body.
3. With its high quality fiberglass epoxy resin case and cover, the midi bus air conditioner has high strength and high resistance to vibration and corrosion.
4. It has abundant cooling capacity, low noise and lower power consumption.
5. World-brands key parts assure the system's reliability and stability.
6. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
7. Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
8. It can be used on 8.5-9m bus.
| Model | VB21 | |
| Standard Cooling Capacity | 21000 Kcal/h (24.5KW, 83330 Btu/h) | |
| Max Cooling Capacity | 22500Kcal/h(26150W, 89300 Btu/h) | |
| Refrigerant | HFCR134a | |
| Compressor | displacement | 400cc |
| Evaporator | Type | Cooper Tube & Aluminium fins |
| Blower Type | Double Axle Centrifugal Flow | |
| Blower Quantity | 4 | |
| Blower Output | 4000 m3/h | |
| Condenser | Type | Cooper Tube & Aluminium fins |
| Fan Type | Axial Flow | |
| Fan Quantity | 3 | |
| Fan Output | 6000 m3/h | |
| Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
| Defrosting Protection | 2℃ | |
| High Pressure Protection | 2.5Mpa | |
| Low Pressure Protection | 0.05Mpa | |
| Fresh Air Exchange Rate | 25% | |
| External Dimension | 3190×1820×190mm | |
| Total current | ≤70A(24V) | |
| Applying Buses | 8.5-9m Bus | |
Note:One year (12 months) warranty period since the date the products have been installed.
VehiClima Industry is a China midi bus air conditioner manufacturer. In addition to bus air conditioner, we also offer truck air conditioner, recreational vehicle air conditioner, military vehicle air conditioner, engineering vehicle air conditioner, and more.
-
- VAC-S4030DH Special Vehicle Air Conditioner Anti-dust: The RV air conditioner can work very well in the desert and oil fields.
-

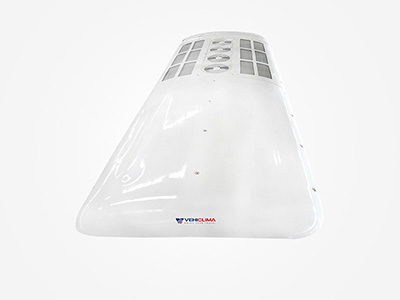

- VB32A Big Bus Air Conditioner High quality fiberglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
-

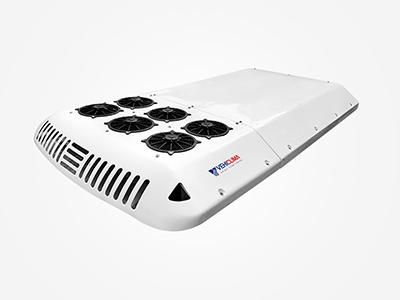

- VB50B Big Bus Air Conditioner Roof-mount layout makes convenient opening and overhauling.
Fashionable appearance, perfectly integrating with the blue body;
-

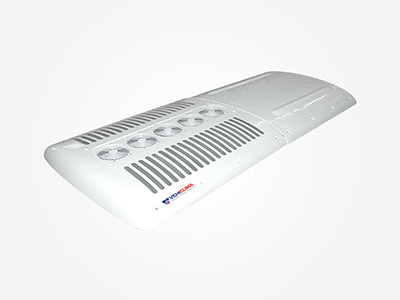

- VB37A Big Bus Air Conditioner Universal parts' application leads maintaining interchangeability, mostly lowing down after-sales service costs.
