Double Decker Bus Air Conditioner
This product has been discontinued and removed from our shelves.

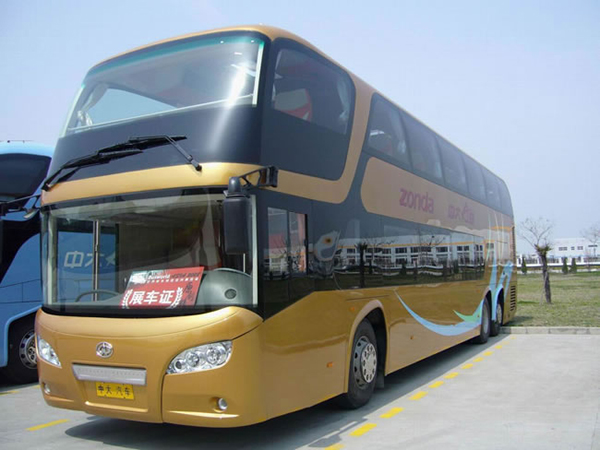

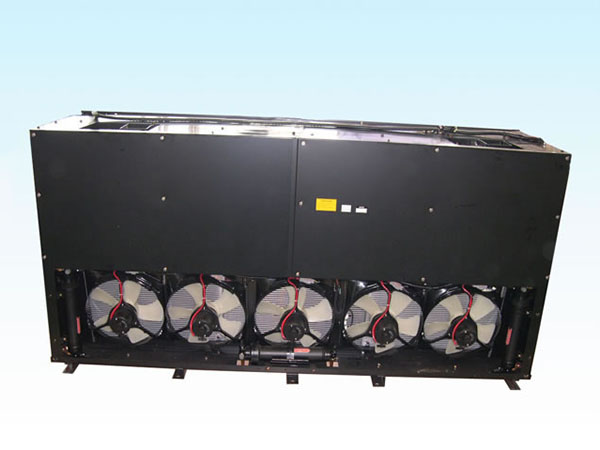

Our double decker bus air conditioner VB48DD is designed for 12-14m long double decker bus. It features big power cooling capacity,economically efficient and reliable performance. This double decker bus air conditioner adops environmentally friendly refrigerant R134a and world first class brand key parts. Rear mount installation make it very easy to equip the A/C unit on the double decker bus.
Technical Specifications| Model | VB48DD | |
| Standard Cooling Capacity | 48000Kcal/h | |
| Max Cooling Capacity | 50000 Kcal/h | |
| Refrigerant | HFCR134a | |
| Compressor | displacement | 836cc |
| Weight | 35Kg | |
| Evaporator | Type | Cooper Tube & Aluminium fins |
| Blower Type | Double Axle Centrifugal Flow | |
| Blower Quantity | 10 | |
| Blower Output | 8500 m3/h | |
| Condenser | Type | Cooper Tube & Aluminium fins |
| Fan Type | Axial Flow | |
| Fan Quantity | 7 | |
| Fan Output | 14700 m3/h | |
| Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
| Defrosting Protection | 2℃ | |
| High Pressure Protection | 2.5Mpa | |
| Low Pressure Protection | 0.05Mpa | |
| Fresh Air Exchange Rate | 25% | |
| External Dimension | 2040×1007×690mm | |
| Total current | ≤150A(24V) | |
| Applying Buses | 12-14m Double Decker Bus | |
VehiClima Industry is a China double decker bus air conditioner manufacturer. In addition to bus air conditioner, we also offer recreational vehicle air conditioner, transport refrigeration unit, military vehicle air conditioner, cabinet air conditioner, window type special vehicle air conditioner, heater of vehicle heating system, and more.
-
