DC Powered Truck Air Conditioner
This product has been discontinued and removed from our shelves.

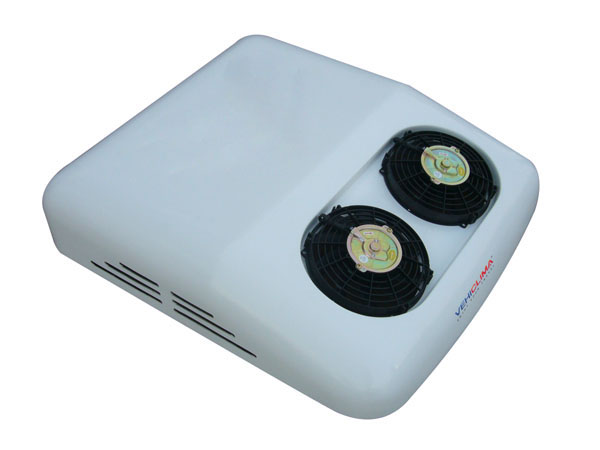

Our roof-top mount series includes the DC powered truck air conditioner.
The DC powered truck air conditioner is fully DC powered and features high efficiency, high reliability, battery power monitor, low noise, easy installation and operation, no idling, no fuel consumption, and no pollution.
Most drivers use the truck air conditioner while driving to save fuel, but it's also perfect to use to sleep well at night. While driving, saving have been reported of up to 10% and during rest, the saving is 3.8 liter/1 gallon an hour.
| Model | VDC20D1 | VDC20D2 | |
| Cooling Capacity | 1600Watts 5500 Btu | 2000Watts 7000 Btu | |
| Voltage | DC12V | DC24V | |
| Refrigerant/Charge Volume | R134a/800g | R134a/800g | |
| Power Consumption | 480 Watts 40 A | 480 Watts 20 A | |
| Compressor | Displacement | 36 cm3 | 36 cm3 |
| Lubricant | RL-68H | RL-68H | |
| RPM Range | 1000 ~ 4500 | 1000 ~4500 | |
| Continuous RPM Limit | 3000 RPM | 3000 RPM | |
| Evaporator | Type | Tube And Fin | Tube And Fin |
| Cool Air Flow | 250 m3 | 250 m3 | |
| Current | 3.5 A | 2 A | |
| Condenser | Type | Concurrent Flow | Concurrent Flow |
| Warm Air Flow | 400 m3/h | 400 m3/h | |
| Current | 6.5 A | 3.5 A | |
| Control System | Inside Temperature | 18~35 ℃Adjustable | 18~35 ℃Adjustable |
| Defrost Temperature | 1~2 ℃ | 1~2 ℃ | |
| Wind Speed | 3 steps | 3 steps | |
| Safety Device Compound Switch | 2.5Mpa OFF/0.05MpaOFF | 2.5Mpa OFF/0.05MpaOFF | |
| Power Loss Protection | Low Voltage Settings | 10.5 V | 21 V |
| Restart Voltage Settings | 11.9 V | 23.8 V | |
| Unit Weight | 40 kg | ||
| Unit Oversize | 804x771x236mm | ||
