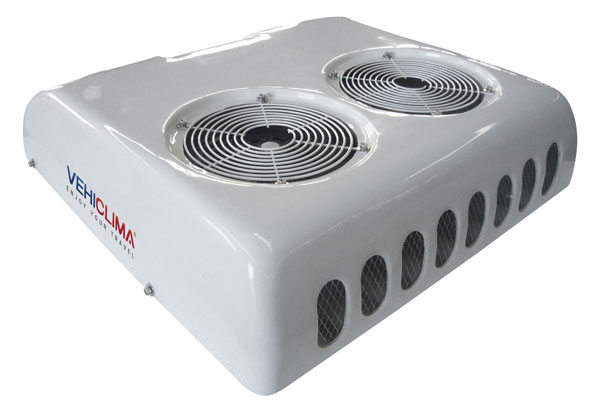

VT30D Rooftop Mount Truck Air Conditioner

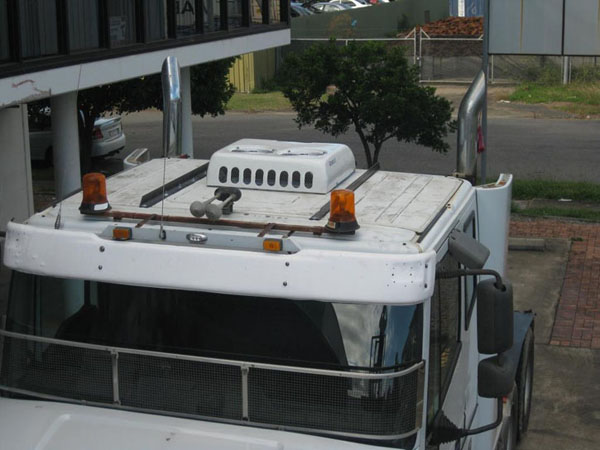

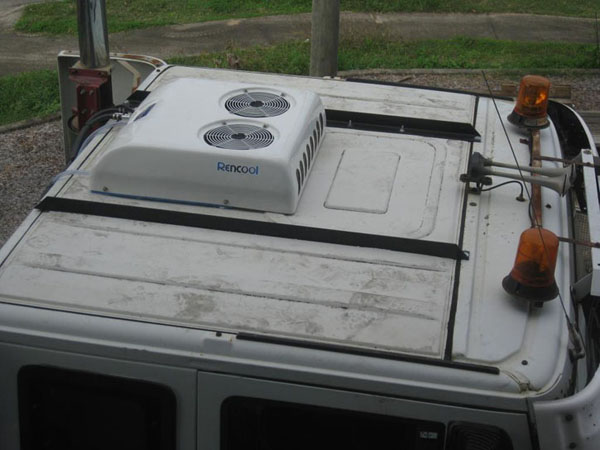

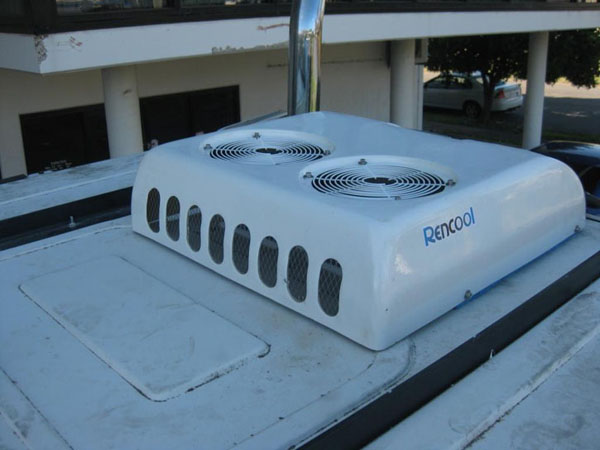

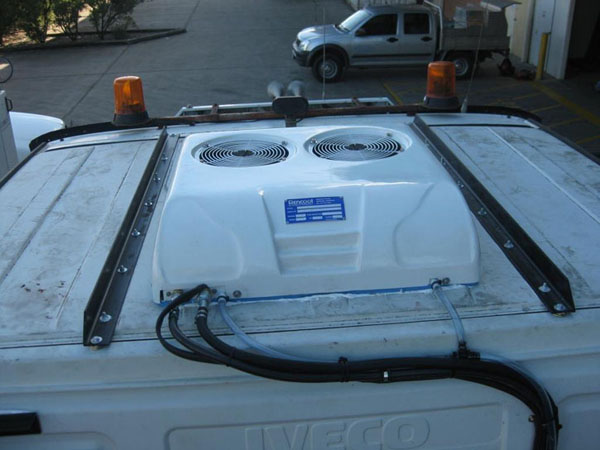

- With small size, this truck air conditioner is ideal for mounting on the roof of a truck and can be well matched with the truck cab.
- With high quality fiberglass epoxy resin case and cover, the A/C system features high strength and high resistance to vibration and corrosion.
- Featuring strong cooling capacity, low noise and low power consumption, the rooftop mount truck air conditioner is suitable for commercial vehicle, heavy industry vehicle, and any type of truck.
- High class key parts assure the reliable working performance and super quality.
- One year warranty is provided for the rooftop mount truck air conditioner.
| Model | | |
| Cooling Capacity | 2500Kcal/h (3.0KW, 10000BTU) | |
| Type | Roof-mounted | |
| Refrigerant | HFCR134a | |
| Compressor | Model | TM16/UP150 |
| Displacement | 162cc/145cc | |
| Weight | 7.1Kg/ | |
| Evaporator | Type | Cooper Tube & Aluminum fins |
| Blower Type | Double Axle Centrifugal Flow | |
| Blower Quantity | 2 | |
| Blower Output | 600 m3/h | |
| Condenser | Type | Cooper Tube & Aluminum fins |
| Fan Type | Axial Flow | |
| Fan Quantity | 2 | |
| Fan Output | 1600m3/h | |
| Voltage | DC24V/12V | |
| Weight | 53 Kg | |
| Overall Dimension | 750*710*220mm | |
| Total current | ≤15A(24V) | |
| Applying Vehicle | Commercial Vehicle, Heavy industry Vehicle, truck cabin | |
VehiClima Industry is a rooftop mount truck air conditioner manufacturer in China. We offer a great variety of vehicle air conditioning products, including engineering vehicle air conditioner, bus air conditioner, recreational vehicle air conditioner, truck air conditioner, military vehicle air conditioner, and more.
