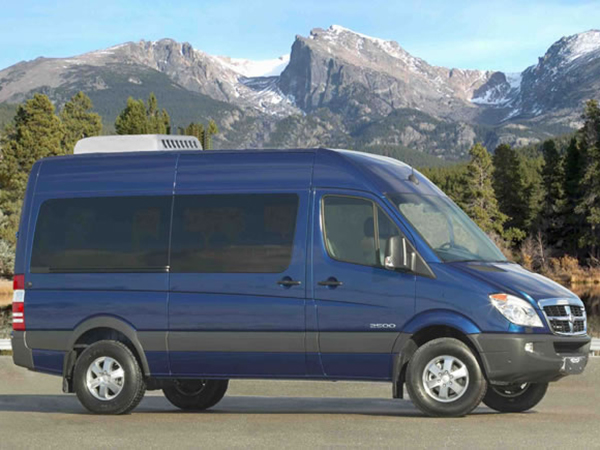

Mini Bus Air Conditioner
This product has been discontinued and removed from our shelves.
Features
1. The roof-mount layout makes the mini bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
3. The mini bus air conditioner has abundant cooling capacity, low noise and low power consumption. This kind air conditioner is used for 5.5-6m bus.
4. World-brands refrigeration key parts assure the reliable working performance and super quality.
5. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
6. With its high quality fiberglass epoxy resin case and cover, this mini bus air conditioner features high strength and high resistance to vibration and corrosion.
Technical specifications
Model | VB06 | |
Standard Cooling Capacity | 5600Kcal/h(6.5KW, 22200 Btu/h) | |
Compressor | Model | TM16/UP150 |
displacement | 162cc/r | |
Weight | 7.1kg | |
Evaporator | Type | Cooper Tube & Aluminum fins |
Blower Type | Double Axle Centrifugal Flow | |
Blower Quantity | 1 | |
Blower Output | 850 m3/h | |
Condenser | Type | Cooper Tube & Aluminum fins |
Fan Type | Axial Flow | |
Fan Quantity | 2 | |
Fan Output | 3800 m3/h | |
Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
High Pressure Protection | 2.5Mpa | |
Low Pressure Protection | 0.05Mpa | |
Weight | 47Kg | |
Refrigerant | HFCR134a | |
Refrigerant Oil | ZXL-100PG | |
Applying Buses | 5.5-6m buses |
Note: One year (12 months) warranty period since the date the products have been installed.
