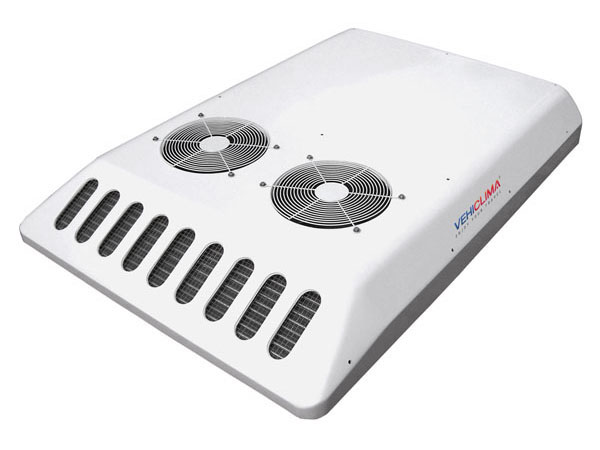

VB12 Mini Bus Air Conditioner
Features- The roof-mount layout makes the mini bus air conditioner convenient to open and overhaul.
- The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
- With its high quality fiberglass epoxy resin case and cover, this mini bus air conditioner features high strength and high resistance to vibration and corrosion. It features abundant cooling capacity, low noise and low power consumption.
- World-brands refrigeration key parts assure the reliable working performance and super quality.
- The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.

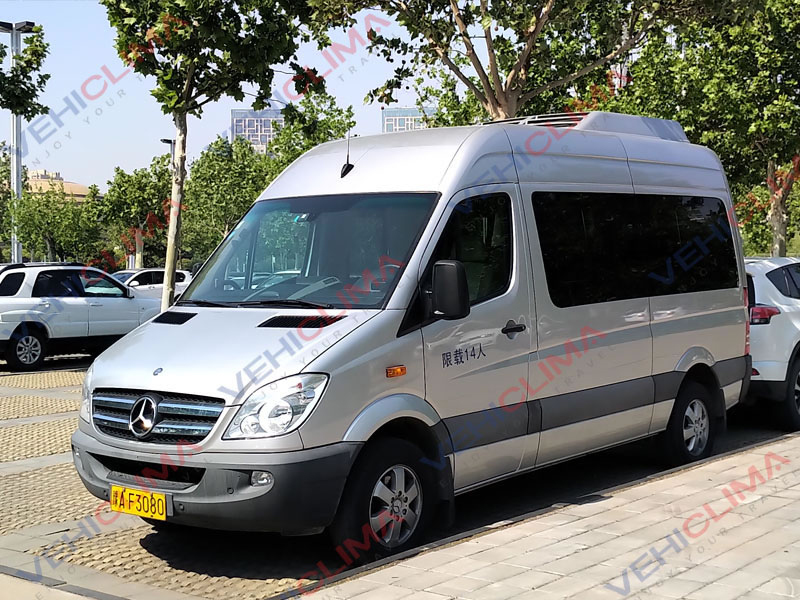

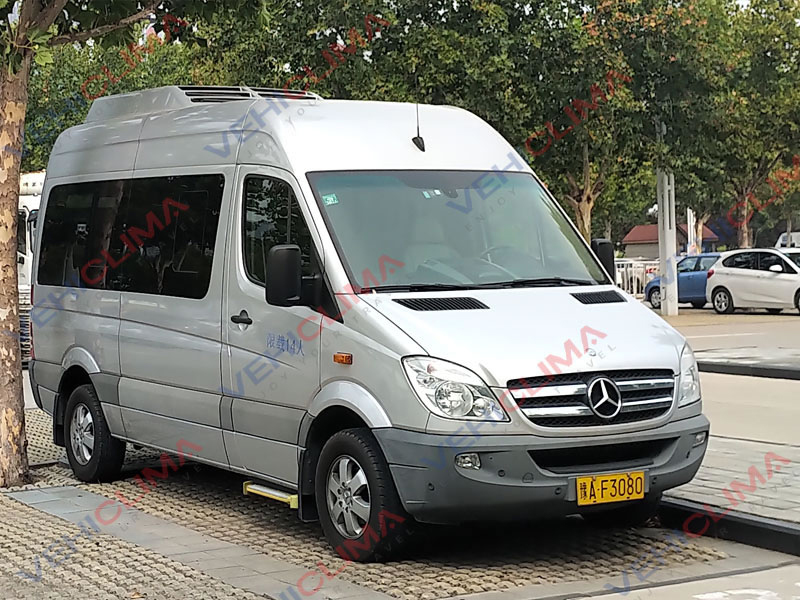

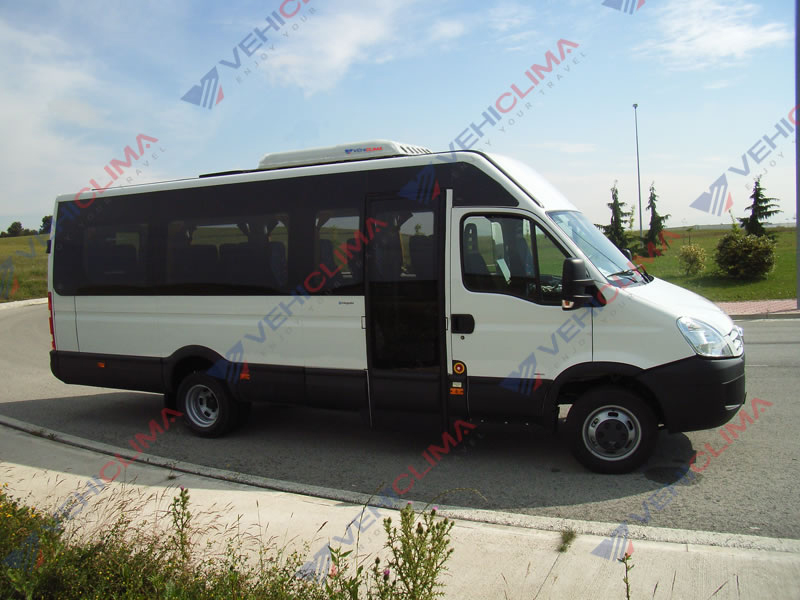

- The mini bus air conditioner is used for mini buses, vans, ambulances, commercial vehicles, etc.
Model | VB12-1 | VB12-2 | ||||
Cooling Capacity | 10320Kcal/h / 41280Btu/h / 12kW | |||||
Compressor | Brand | Unicla | Valeo | Unicla | Valeo | |
Model | UP200 | TM21 | UP200 | TM21 | ||
Displacement | 200 | 215cc/r | 200 | 215cc/r | ||
Evaporator | Heat exchanger type | Copper tube & aluminum fins | ||||
Blowers | 2 | |||||
Max Air Flow | 1800m³/h | |||||
Condenser | Heat exchanger type | Copper tube & aluminum fins | ||||
Fans | 2 | |||||
Max Air Flow | 4000 m³/h | |||||
Control System | Bus interior temp | 16-27 ℃ Adjustable | ||||
Defrost protection | 2℃ | |||||
H/P protection | 2.5 Mpa | |||||
L/P protection | 0.05 Mpa | |||||
Power consuming | ≤70A/12V | ≤35A/24V | ||||
Refrigerant | R134a | |||||
Weight of roof-top unit | kgs | |||||
Overall dimension | 1520X1100X174mm |
Note: One year (12 months) warranty period since the date the products have been installed.
As a Chinese mini bus air conditioner manufacturer, we also offer air duct mount air conditioner, rooftop mount truck air conditioner, articulated bus air conditioner, container truck refrigeration unit, APU truck air conditioner, and more.
