Mini Bus Air Conditioner

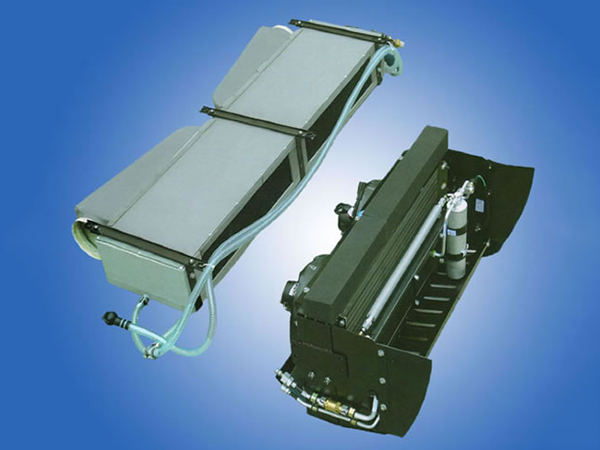

VB10IN Mini Bus Air Conditioner
VB10IN Mini Bus Air Conditioner VB10IN Mini Bus Air Conditioner

This product has been discontinued and removed from our shelves.

Features
1. The roof-mount layout of the mini bus air conditioner makes convenient opening and overhauling.
2. The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
3. With its high quality fiberglass epoxy resin case and cover, this mini bus air conditioner features high strength and high resistance to vibration and corrosion.
4. World-brands refrigeration key parts assure the reliable working performance and super quality.
5. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
6. The mini bus air conditioner has abundant cooling capacity, low noise and low power consumption. This kind air conditioner is used for Coaster/Rosa 6m bus.

Technical specifications
Model VB10IN
Standard Cooling Capacity 10000Kcal/h (11.2-12KW,39680 Btu/h)
Max Cooling Capacity 10800Kcal/h(12500W, 42860 Btu/h)
Refrigerant HFCR134a
Compressor Model UP200/TM21
displacement 200cc/215cc
Evaporator Type Cooper Tube & Aluminum fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 2
Blower Output 2400 m3/h
Dimension 1290×555×230 mm
Condenser Type Cooper Tube & Aluminum fins
Fan Type Axial Flow
Fan Quantity 2
Fan Output 4000 m3/h
Dimension 838×313×388 mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
External Dimension 1374×1188×21mm
Total current ≤32A(24V)

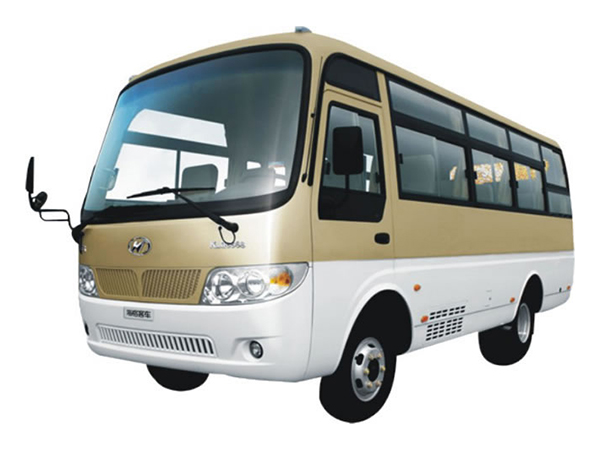

Applying Buses Coaster/Rosa 6m Bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is a professional mini bus air conditioner manufacturer in China. We also provide van refrigeration unit, rooftop mount truck air conditioner, APU truck air conditioner, container truck refrigeration unit, and ambulance car air conditioner, etc.
