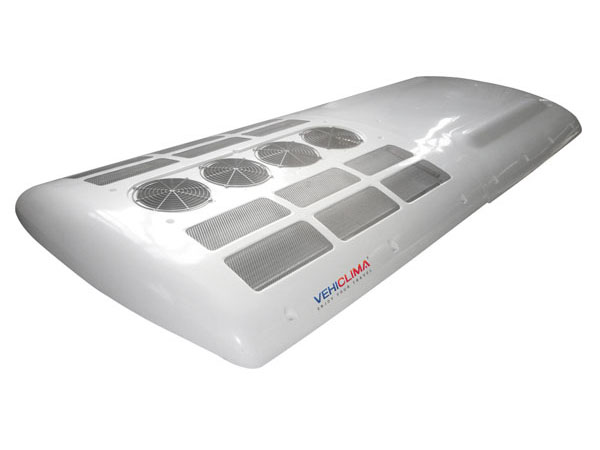

Big Bus Air Conditioner

Big Bus Air Conditioner

This product has been discontinued and removed from our shelves.

Features
1. The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body.
3. With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
4. It has abundant cooling capacity, low noise and lower power consumption.
5. World-brands key parts assure the system's reliability and stability.
6. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
7. Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
8. Applying buses: 9-9.5m buses.

Specifications

Model VB24
Standard Cooling Capacity 24000Kcal/h (28KW, 95230 Btu/h)
Max Cooling Capacity 26000Kcal/h(30200W, 103000 Btu/h)
Refrigerant HFCR134a
Compressor Model 4PFCY
displacement 555cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 6
Blower Output 6000 m3/h
Dimension 1960×1700×185 mm
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 4
Fan Output 8000 m3/h
Dimension 1890×1700×185 mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 3850×1700×185mm
Total current ≤100A(24V)
Applying Buses 9-9.5m Bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is a professional big bus air conditioner manufacturer in China. In addition to bus air conditioner, we also provide other vehicle air conditioning products, such as main battle vehicle air conditioner, cabinet air conditioner, transport refrigeration unit, window type special vehicle air conditioner, and more.
