Water Heater Introduction

How the YUHUA Water Heater Works
Inside the water heater, combustion air from the environment and fuel from the vehicle tank are mixed and ignited in the combustion chamber. The water preheater is connected with the vehicle's engine radiator. Coolant from the engine is heated by the heat system and circulated in the engine's cooling system. Thus, the engine is warmed up while the engine is off. This makes it very easy to start the engine in a very cold day in winter. Meanwhile, perfect warm air will be fed into the cabin interior once you start the A/C or warm blower.

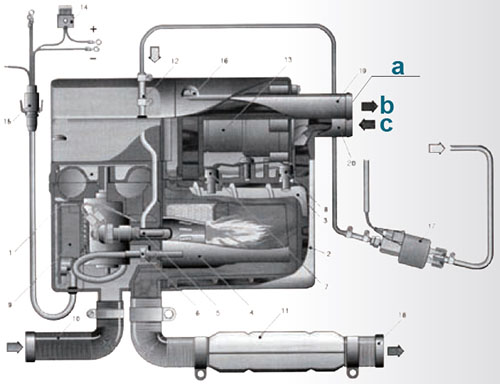

Schematic Diagram-1
a. to connect the engine
b. coolant outlet
c. coolant inlet

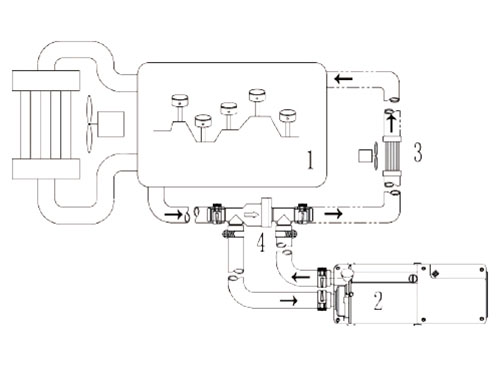

Schematic Diagram-2
1. Engine
2. Heater
3. Warm Blower (Radiator)
4. Shut Off Valve

Advantages of Your YUHUA Water Heater
1. More consistent heat output
2. Automatic operation
3. Remote control is optional. (no more than 800 meters)
4. Energy saving and environmental friendly heating appliance
5. Domestic water heating possible
6. Smart size and flexible installation
7. The water heater can be installed in the engine compartment.
8. Small-diameter pipelines
9. Need-driven heat output – either via panel radiators or radiators with fan
10. Avoid wearing and tearing the engine thanks to pre-heating in the cold winter.
11. Maintenance free and user friendly

Class Upgrade for Extra Heat
If you want to distribute the heat from your YUHUA water heater even more precisely throughout the vehicle, then YUHUA water/air convectors are a perfect addition to the water heating system. These extremely fuel efficient and quiet units are available with heat outputs of 5kW and 9 kW for 12 or 24 V applications.

Optional Functions
YUHUA water heater can support radio remote control function. Then you can manage your vehicles by your smartphone and apps. This makes it possible to pre-heat your vehicles before they start working even you're still in the bedroom!

Water Heater Specification

5kW unit
9 kW unit
Installation Diagram – 5kW unit
Installation Diagram – 9kW unit
Technical Parameters
YUHUA Water Heater Specification
Gasoline version Diesel version G D WH-D5 WH-G5 WH-D9 WH-G9
Fuel Diesel Gasoline Diesel Gasoline
Voltage V 12/24 12/24 12/24 12/24
Control PMW stepless PMW stepless PMW stepless PMW stepless
Heat Output w 5,000 5,000 9,000 9,000
Electrical Power Consumption w 22 - 50 22 - 50 37 - 90 37 - 90
Fuel Consumption l/h 0.2-0.5 0.2-0.5 0.2 – 1.0 0.2 – 1.0
Ambient Temperature -40 -40 -40 -40
Dimensions L x W x H mm 250 x 160 x 90 250 x 160 x 90 381 x 131 x 232 381 x 131 x 232
Weight kg 2.7 2.7 4.8 4.8
