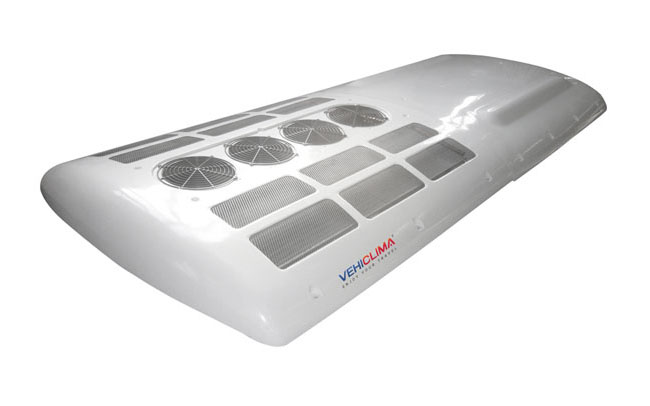

Big Bus Air Conditioner

Features
1. The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body.
3. With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
4. It has abundant cooling capacity, low noise and lower power consumption.
5. World-brand key parts assure the system's reliability and stability.
6. The water-proof electric fittings efficiently increase the big bus air conditioner system's reliability and lifespan of the electric parts.
7. Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
8. It can be used on 9.5-10.5 buses.
9. Metal bracket and cartons

Specifications

Model VB26
Standard Cooling Capacity 26000Kcal/h(30200W, 103000 Btu/h)
Max Cooling Capacity 28000Kcal/h(32540W, 111100 Btu/h)
Refrigerant HFCR134a
Compressor Model 4NFCY
displacement 647cc
Evaporator Type Cooper Tube & Aluminium fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 6
Blower Output 6000 m3/h
Dimension 2040×1700×185 mm
Condenser Type Cooper Tube & Aluminium fins
Fan Type Axial Flow
Fan Quantity 4
Fan Output 8000 m3/h
Dimension 1890×1700×185 mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 3935×1700×185mm
Total current ≤100A(24V)
Applying Buses 9.5-10.5m Bus

Note: One year (12 months) warranty period since the date the products have been installed.

As a professional big bus air conditioner manufacturer in China, VehiClima Industry also offers container truck refrigeration unit, main battle vehicle air conditioner, under seat mount air conditioner, cabinet air conditioner, and more.
