VB12N Mini Bus Air Conditioner

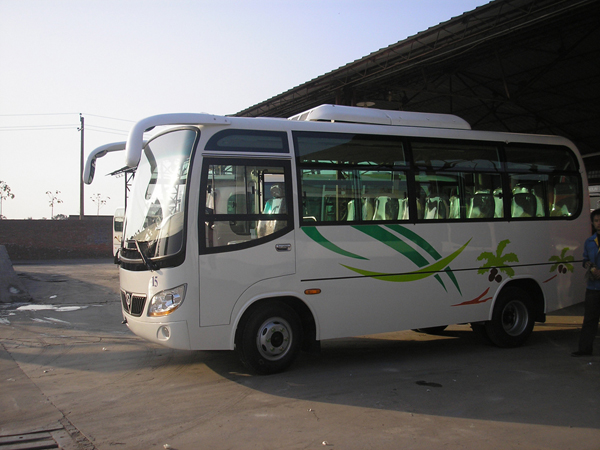

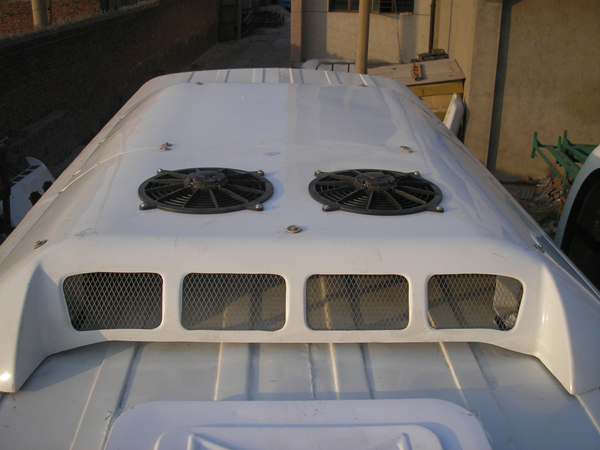

Features- This kind of air conditioner is used for 6-7m bus. The roof-mount layout makes the mini bus air conditioner convenient to open and overhaul.
- The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
- It has abundant cooling capacity, low noise and lower power consumption.
- The mini bus air conditioner is equipped with world-brands refrigeration key parts which assures the reliable working performance and super quality.
- The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
- With its high quality fiberglass epoxy resin case and cover, the mini bus air conditioner has high strength and high resistance to vibration and corrosion.
Model | | |
Standard Cooling Capacity | 12000 Kcal/h (14KW, 47615 Btu/h) | |
Max Cooling Capacity | 12900Kcal/h(15000W, 51200 Btu/h) | |
Refrigerant | HFCR134a | |
Compressor | Model | UX330/TM31 |
displacement | 330cc/313cc | |
Evaporator | Type | Cooper Tube & Aluminum fins |
Blower Type | Double Axle Centrifugal Flow | |
Blower Quantity | 6 | |
Blower Output | 2400 m3/h | |
Dimension | 1290×555×230 mm | |
Condenser | Type | Cooper Tube & Aluminum fins |
Fan Type | Axial Flow | |
Fan Quantity | 2 | |
Fan Output | 3200 m3/h | |
Dimension | 838×313×388 mm | |
Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
Defrosting Protection | 2℃ | |
High Pressure Protection | 2.5Mpa | |
Low Pressure Protection | 0.05Mpa | |
Total current | ≤32A(24V) | |
Applying Buses | Coaster/Rosa 6m Bus |
Note: One year (12 months) warranty period since the date the products have been installed.
VehiClima Industry is a professional mini bus air conditioner manufacturer in China. Apart from bus air conditioner, we also offer transport refrigeration unit, engineering vehicle air conditioner, recreational vehicle air conditioner, truck air conditioner, auto air conditioner parts, and more.
